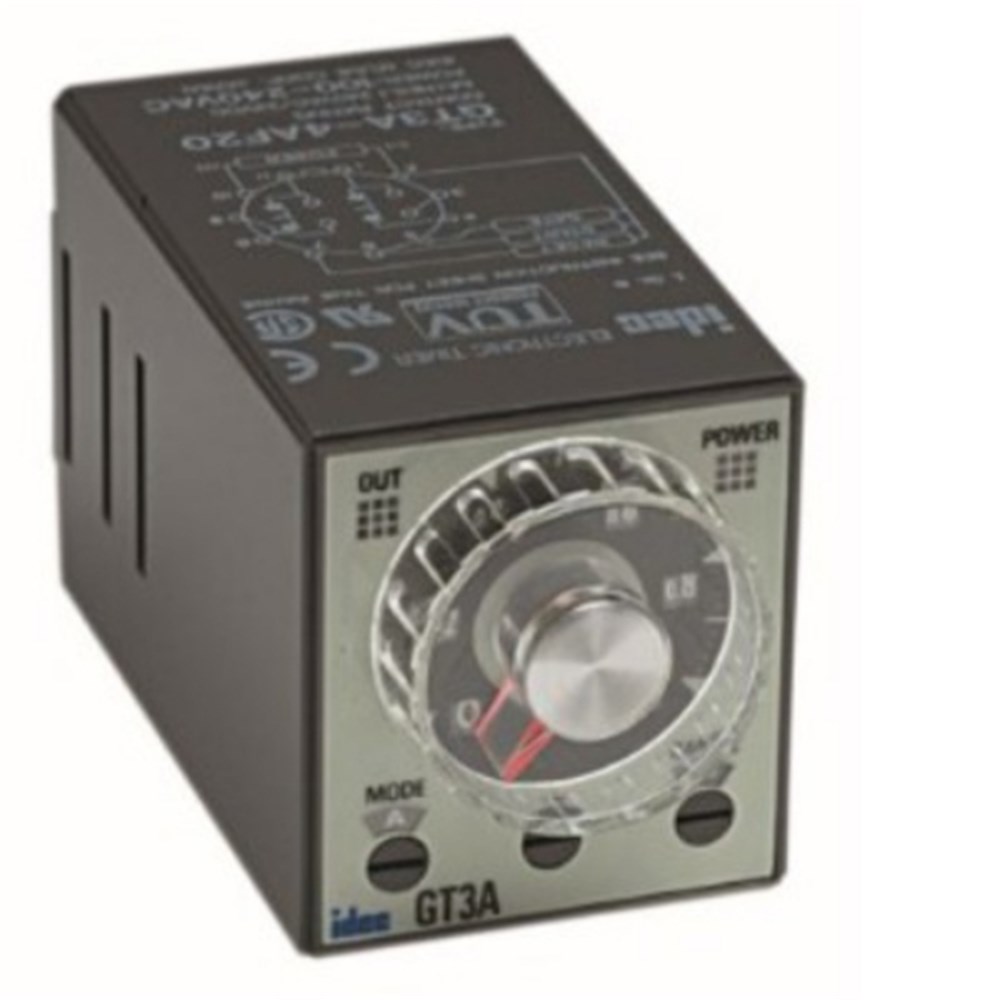

IDEC PLUG-IN TIMER 11 PIN 100-240VAC DPDT GT3A-4AF20

Product Code: GT3A-4AF20

  • 4 selectable operation modes on each model External start, reset, and gate inputs Panel mount or socket mount Large variety of timing functions Power and output status indicating LEDs
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Storage Temperature (°C) -30 - +70
Operational Temperature Range (°C) -10 to +50
Brand IDEC
Product Type Plug-In Timer
Series GT3A
Contacts Delayed DPDT
Input Voltage AC (V) 100 - 240
Input Voltage AC/DC (V) 24
Input Voltage DC (V) 12
Insulation Resistance (MO) 100
Maximum Reset Time (s) 60ms
No. of Pins 11
Output Voltage AC (V) 240
Output Voltage DC (V) 24
Power Consumption (W) 2.2VA (100V AC/60Hz), 4.1VA (200V AC/60Hz)
Timing Range 0.1s - 180hrs
Degree of Protection IP40 (Timer), IP20 (Socket)
Pollution Degree 2
Standards and Approvals EN 61812-1:2011, EN IEC 63000:2018

Description

The IDEC GT3A-4AF20 is a versatile plug-in timer with an 11-pin base, designed for a wide range of timing functions. It supports four selectable operation modes and features external start, reset, and pause inputs. The unit provides clear indication of power and output status via LEDs and operates within a time range of 0.05 seconds to 180 hours on a 100-240VAC input voltage. Its DPDT contacts allow for delayed response in various configurations, enhancing its adaptability for complex control systems.
