Product Code: GT3S-1AF20

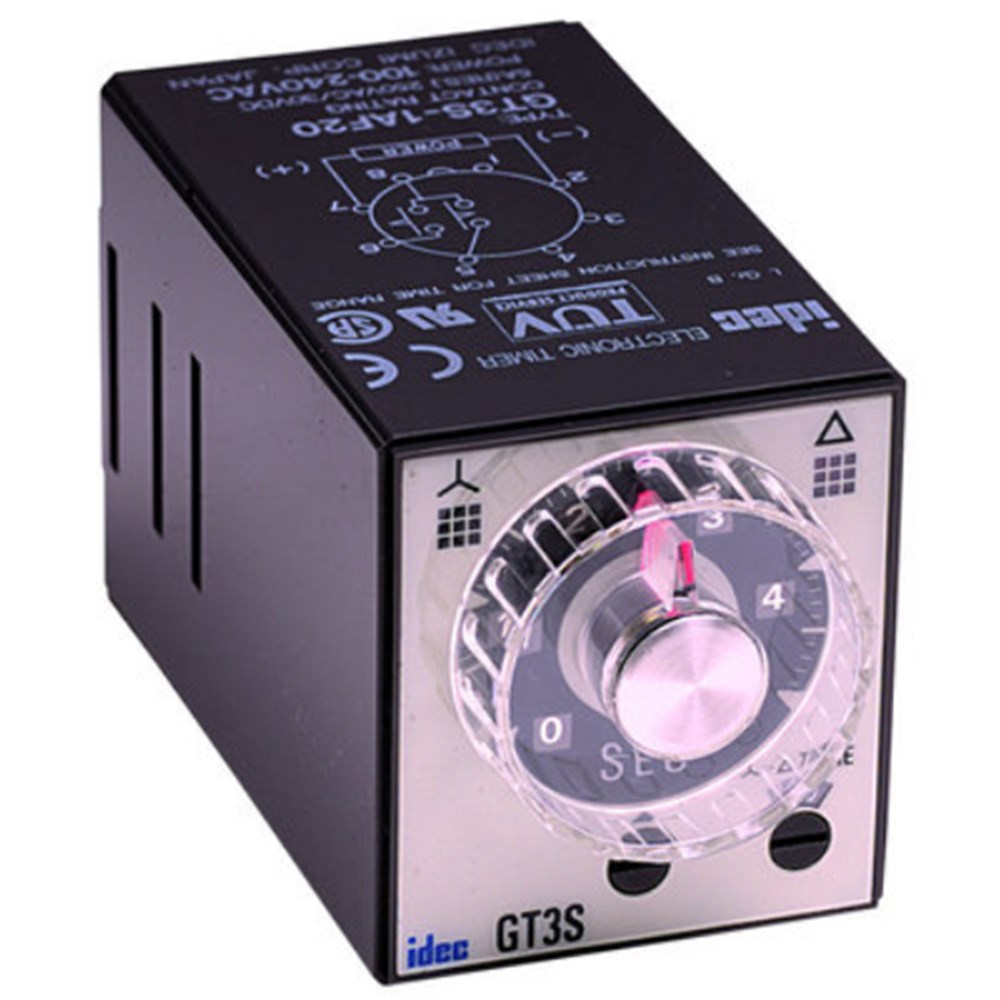

The IDEC GT3S-1AF20 is a versatile plug-in timer suitable for specialized timing functions, featuring an 8-pin octal base for DIN rail or surface mounting. It operates with a voltage range of 100-240VAC/DC and supports timing from 0.05s to 100s in both star-delayed and delta-delayed SPST modes. The unit's solid-state CMOS circuitry delivers precise timing control, complemented by an easy-to-view operation indicator. Designed for reliability, it includes a DIN 48mm square panel mount adapter and adheres to UL/c-UL and EN safety standards.

Brand	IDEC
Contacts	Star-Delayed SPST Delta-Delayed SPST
Degree of Protection	IP40 (Timer), IP20 (Socket)
Input Voltage AC (V)	100 - 240
Insulation Resistance (MO)	100
Maximum Reset Time (s)	500ms
No. of Pins	8
Operating Voltage AC (V)	100 - 240
Operational Temperature Range (°C)	-10 to +50
Output Voltage AC (V)	250
Output Voltage DC (V)	30
Pollution Degree	2
Series	GT3S
Standards and Approvals	EN 61812-1:2011, EN IEC 63000:2018
Timing Range	0.05s - 100s
