Product Code: GT3W-A11AF20N

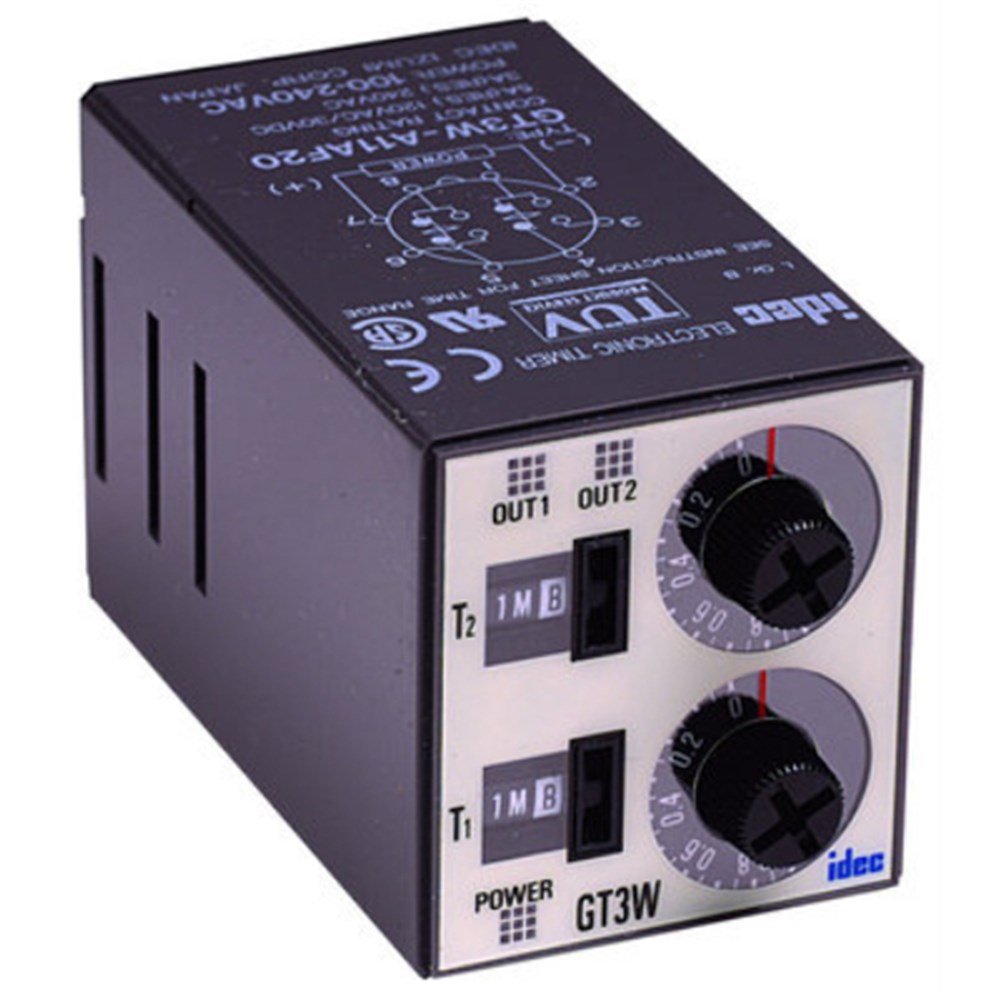

The IDEC GT3W-A11AF20N is a versatile plug-in timer suitable for specialized timing applications, featuring an 8-pin octal base for DIN rail or surface mounting. It provides dual time settings ranging from 0.1 seconds to 6 hours and includes delayed DPDT contact operation with a voltage range of 100-240VAC/DC. This timer supports multiple functions such as sequential start, interval, on-delay, and recycler modes, with the convenience of eight selectable operation modes. Equipped with power and output status LEDs, it ensures clear indication of operational status and offers extended time ranges up to 300 hours.

Brand	IDEC
Contacts	Delayed DPDT
Degree of Protection	IP40 (Timer), IP20 (Socket)
Input Voltage AC (V)	100 - 240
Insulation Resistance (MO)	100
Maximum Reset Time (s)	60ms
No. of Pins	8
Operating Voltage AC (V)	100 - 240
Operational Temperature Range (°C)	-10 to +50
Output Voltage AC (V)	240 (3A) / 120 (5A)
Output Voltage DC (V)	30
Pollution Degree	2
Power Consumption (W)	2.6VA (100V AC /60Hz), 5.1VA (200V AC /60Hz)
Series	GT3W
Standards and Approvals	EN 61812-1:2011, EN IEC 63000:2018
Storage Temperature (°C)	-30 - +70
Timing Range	0.1s - 6hrs
