Product Code: OTP125B3M

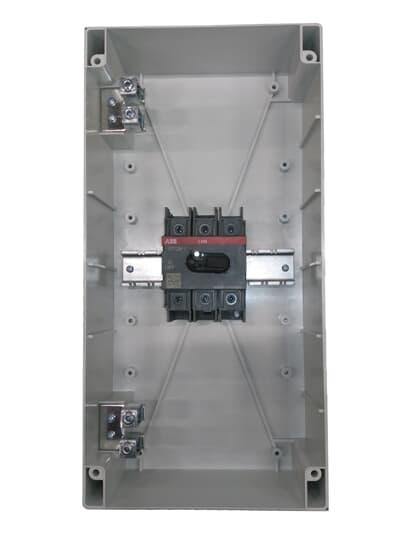

Encl. Switch Disconnector, 3-p. 415V AC23 90A, 45kW. Plastic enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.

Control Element Colour	Black
Brand	ABB
Cable Cross Section (mm²)	10 - 70
Conventional Thermal Current - Ithe (A)	125
Degree of Protection	IP65
Dimensions (mm)	200W x 400H x 140D
Enclosure Material	Plastic
Handle Colour	Black
Handle Type	Selector
Included	Handle
Maximum Operational Voltage AC (V)	750
NEMA Degree of Protection	1
No. of Poles	3
Pollution Degree	3
Power Loss (W)	6.3/Pole
Rated Impact Resistance	Housing IK08
Rated Insulation Voltage (V)	750
Rated Operational Current AC-22A 380-415V (A)	125
Rated Operational Current AC-22A 690V (A)	125
Rated Operational Current AC-23A 380-415V (A)	90
Rated Operational Current AC-23A 500V (A)	70
Rated Operational Current AC-23A 690V (A)	50
Rated Operational Power AC-23A 380-415V (kW)	45
Rated Operational Power AC-23A 500V (kW)	45
Rated Operational Power AC-23A 690V (kW)	45
Rated Operational Voltage (V)	750
Rated Short-Time Withstand Current - Icw (kA)	2.5
Rated Short-time Withstand Current - Icw (kA/1s)	2.5
Rated Uninterrupted Current - Iu (A)	125
Standards and Approvals	IEC 60947-1, IEC 60947-3
Suitable For	Distribution Board Installation
Type	Main Switch
