Product Code: CM-PFE

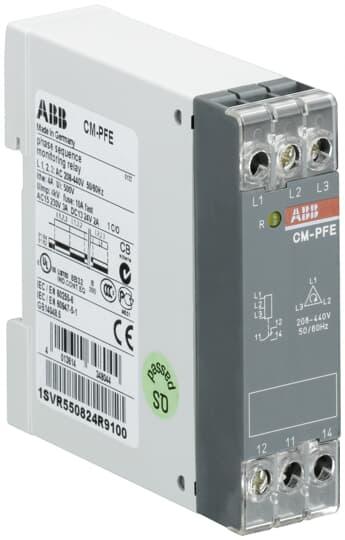

The Multifunctional Three Phase Monitoring Relay is designed to monitor phase loss and undervoltage in three-phase systems. It can be used with L1, L2, and L3 voltages ranging from 208-440VAC. The relay has a measuring range of 208-440VAC (L-L) and a start-up delay of 500ms. It also has a tripping delay of 500ms and a time range feature. The relay comes with one changeover contact and operates at a control supply voltage of 1. With a width of 22.5mm, it is compact and easy to install in modular systems.

Brand	ABB
Contacts	1CO
Degree of Protection	IP50 (Housing), IP20 (Terminals)
Duty Time	100%
LED Colour	F: Red, R: Yellow
Measuring Range AC (V)	3 x 208-440
Mounting Type	DIN Rail
No. of Phases	3
Operational Temperature Range (°C)	-20 to +60
Pollution Degree	3
Rated Control Supply Voltage AC (V)	3 x 208-440
Rated Frequency (Hz)	50/60
Timing Range	Start-up delay: 500ms, Tripping delay: 500ms
