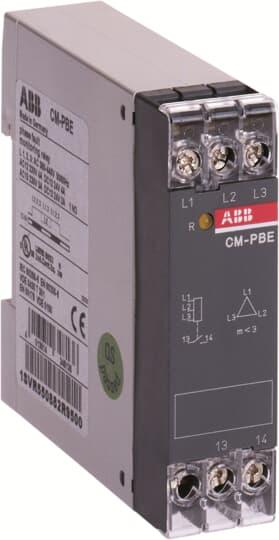

ABB CM-PBE 3-PHASE MONITORING RELAY 1NO 10A 380-480VAC

Product Code: CM-PBE

Multifunctional Three phase monitoring relay Monitor Phase loss & undervolatge L1,L2,L3=380-440VAC, 380..440VAC (L-L) Measuring range, Start-up delay: 500ms Tripping delay: 150ms Time range, 1 N/O contact, 380-440VAC (L-L) Control supply voltage 1 Width 22.5mm modules

Technical Specifications

Brand ABB
Contacts 1NO
Degree of Protection IP50 (Housing), IP20 (Terminals)
Duty Time 100%
LED Colour F: Red, R: Yellow
Measuring Range AC (V) 3 x 380-440
Mounting Type DIN Rail
No. of Phases 3
Operational Temperature Range (°C) -20 to +60
Pollution Degree 3
Rated Control Supply Voltage AC (V) 3 x 380-440
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Timing Range Start-up delay: 500ms, Tripping delay: 150ms
