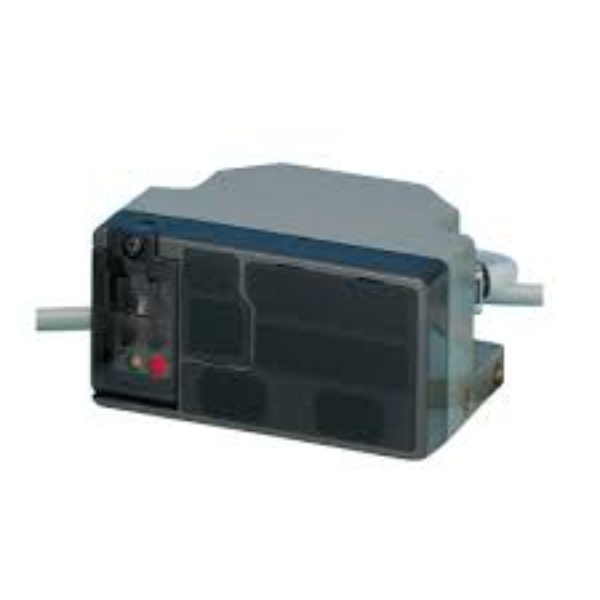

PANASONIC LONG RANGE & WIDE AREA PHOTOELECTRIC SENSOR PX-22

Product Code: PX-22

The Long Range and Wide Area Photoelectric Sensor has a sensing range of 3 meters for both out 1 and out 2 areas. It operates on a supply voltage of 10 to 31 V DC. The sensor features NPN open-collector transistors for out1 and out2, and it is rated IP65 for protection against dust and water.

Technical Specifications

Output Operation Light-ON/Dark-ON
Sensing Range (mm) 300
Brand PANASONIC
Ambient Temperature Range (°C) –10 to +55
Degree of Protection IP65
Material Body-PBT, Lens-Acrylic, Cover-Polycarbonate
Operating State/Fault Indication Operation -Red LED (Out 1), Yellow LED(Out 2)
Outputs NPN open-collector transistor
Pollution Degree 3
Rated Supply Voltage DC (V) 10 - 31
Series PX-2
Type Standard
Weight (kg) 0.21
