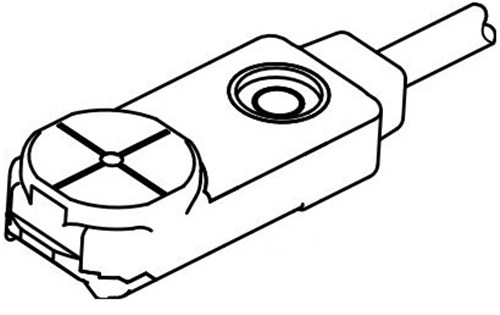

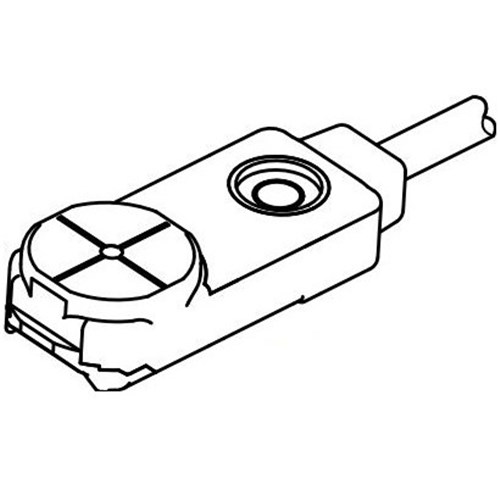

Panasonic GX-F12B-P-C5 Rectangular Inductive Proximity Sensor NC PNP-Output 5m L Cable

Product Code: GX-F12B-P-C5

  • Compact sensor with 0-3.3 mm range
  • Operates on 12-24 VDC, <15 mA
  • Durable PBT housing, IP68/IP68G rated
  • Wide temp range: -40 to 85°C
  • 5m cable with orange LED indicator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Rectangular Inductive Proximity Sensor
Brand PANASONIC
Cable Length 5 m
Cable Type 3-core oil, heat and cold resistant cabtyre cable
Degree of Protection IP68, IP68G
Housing Material PBT
Humidity 35-95%
Insulation Resistance 50 MOhm
Operation Indicator Orange LED ON
Operational Temperature -40 to 85 deg C
Rated Current <15 mA
Rated Voltage 12-24 VDC
Relative Humidity 35 to 95%
Sensing Range 0-3.3 mm
Sensor Type Front Sensing
Shock Resistance 10000 ms
Utilisation Category DC-12 or DC-13
Weight 20 g

Description

<p>When it comes to reliable detection in industrial and commercial settings, this Proximity Sensor offers a blend of precision and durability. Designed to meet the demands of various applications, its sensing range of 0-3.3 mm makes it ideal for tasks requiring close-range detection.</p><p>Operating on a rated voltage between 12-24 VDC and drawing less than 15 mA, this sensor is energy-efficient without compromising performance. The robust housing made from Polybutylene Terephthalate (PBT) ensures longevity even in challenging environments. Its IP68 and IP68G ratings signify excellent protection against dust ingress and continuous immersion in water, making it suitable for use in harsh conditions.</p><p>The operational temperature range from -40 to 85 degrees Celsius allows for deployment across diverse climates without risk of malfunction due to extreme temperatures. Additionally, the sensor&amp;#39;s capacity to function effectively within a humidity range of 35-95% further enhances its adaptability.</p><p>Weighing just 20 grams, the sensor is lightweight yet resilient, withstanding shocks up to 10,000 milliseconds—an essential feature for maintaining accuracy in dynamic environments where impacts are common.</p><p>With an insulation resistance of 50 MOhm, electrical integrity is assured even under demanding conditions. The device includes an orange LED operation indicator that illuminates when the sensor is active, providing clear visual feedback during operation.</p><p>Installation flexibility is enhanced by a generous cable length of five meters, allowing ample reach to connect within your system setup without hassle or additional extensions.</p><p>Overall, this proximity sensor combines efficiency with robustness—ideal for those who require consistent performance paired with durable construction.</p>
