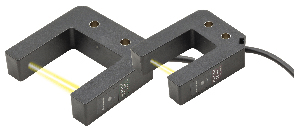

Panasonic CZ-172B U-shaped Photoelectric Sensor 12-24VDC 50mm Sensing 2m L Cable U-shaped NPN-Output

Product Code: CZ-172B

  • Compact photoelectric sensor with 50 mm range
  • Operates on 12-24 VDC, <15 mA current
  • Durable polycarbonate housing, IP65 rated
  • Fast response time of <0.5 ms
  • Withstands temps from -30 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type U-shaped Photoelectric Sensor
Brand PANASONIC
Cable Length 2 m
Cable Type 3 core cabtyre
Degree of Protection IP65
Housing Material Polycarbonate
Humidity 35-85%
Illuminance 100000 lx
Insulation Resistance 20 MOhm
Operational Temperature -30 to 70 deg C
Output Type NPN
Rated Current <15 mA
Rated Voltage 12-24 VDC
Relative Humidity 35 to 85%
Response Time <0.5 ms
Sensing Range 50 mm
Sensor Type Standard Photoelectric
Shape U-shaped
Shock Resistance 500 ms
Weight 80 g

Description

<p>When considering a reliable photoelectric sensor for industrial and commercial applications, this model presents itself as a solid choice. Its design focuses on durability and consistent performance, making it suitable for various environments.</p><p>This sensor offers a sensing range of 50 mm, which is ideal for precision tasks that require close monitoring. Operating within a rated voltage of 12-24 VDC and drawing less than 15 mA of current, it ensures energy efficiency without compromising functionality. The NPN output type further enhances its integration capabilities with existing systems.</p><p>Constructed with polycarbonate housing, the sensor promises robustness while maintaining a lightweight profile at just 80 grams. This material choice also contributes to its IP65 degree of protection, ensuring resistance against dust ingress and low-pressure water jets from any direction—key features for harsh industrial settings.</p><p>The operational temperature range spans from -30 to 70 degrees Celsius, allowing the sensor to perform reliably in both cold storage facilities and high-temperature manufacturing environments. Additionally, it handles humidity levels between 35-85%, broadening its applicability across different climatic conditions.</p><p>With an impressive response time of under 0.5 ms, this sensor is adept at rapid detection tasks where speed is crucial. It boasts shock resistance up to 500 ms and insulation resistance of 20 MOhm, adding layers of reliability during operation.</p><p>The included cable length is 2 meters long, providing flexibility in installation without necessitating immediate extensions or modifications. Furthermore, with an illuminance capacity reaching up to 100000 lux, the sensor can function effectively even in brightly lit areas without interference or false readings.</p><p>In summary, this photoelectric sensor combines efficient power usage with robust construction and fast response times. Its adaptability across diverse environmental conditions makes it an appealing option for those seeking dependable performance in demanding applications.</p>
