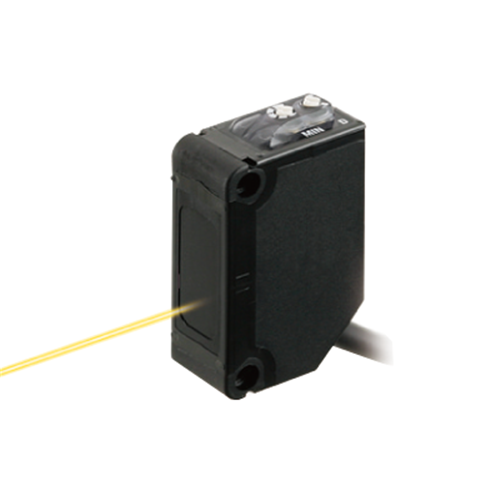

Panasonic CX-421-Z Compact Photoelectric Sensor 12-24VDC 300mm Sensing 2m L Cable

Product Code: CX-421-Z

  • Compact optical sensor with 300 mm range
  • Operates on 12-24 VDC, <13 mA current
  • Durable PBT housing, IP67 rated
  • Fast response time of less than 1 ms
  • CE and EMC Directive approved
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Compact Photoelectric Sensor
Brand PANASONIC
Series Cx-400
Cable Length 2 m
Cable Type 2-core cabtyre cable
Degree of Protection IP67
Emitting Element Infrared
Housing Material PBT
Humidity 35-85%
Illuminance <3000 lx
Insulation Resistance 2 MOhm
Mounting Type Bracket
Operation Indicator Orange LED ON
Operational Temperature -30 to 70 deg C
Rated Current <13 mA
Rated Voltage 12-24 VDC
Relative Humidity 35 to 85%
Response Time <1 ms
Sensing Range 300 mm
Sensor Type Diffuse Reflective
Shock Resistance 500 ms
Standards and Approvals CE, EMC Directive
Weight 60 g

Description

<p>The Cx-400 series optical sensor is a robust and highly reliable solution for various industrial and commercial applications. Designed to deliver precise performance, this sensor offers a sensing range of up to 300 mm, making it suitable for tasks that require accurate detection over moderate distances.</p><p>Operating on a voltage range of 12-24 VDC and drawing less than 13 mA, the Cx-400 series ensures energy efficiency while maintaining consistent performance. Its infrared emitting element provides dependable operation even in challenging lighting conditions with an illuminance threshold of less than 3000 lx. The orange LED operation indicator clearly signals active status, facilitating easy monitoring during use.</p><p>Constructed with durable PBT housing, the sensor is designed to withstand harsh environments. It boasts an IP67 degree of protection, ensuring complete dust ingress protection and resistance against immersion in water up to specified limits. This makes it ideal for outdoor installations or environments prone to moisture exposure.</p><p>Installation is straightforward thanks to its bracket mounting type, allowing secure attachment in various settings. The operational temperature range from -30 to 70 degrees Celsius ensures reliability across diverse climates and industrial scenarios. Additionally, the sensor&amp;#39;s humidity tolerance between 35-85% further enhances its adaptability.</p><p>With standards and approvals including CE marking and compliance with EMC Directive requirements, this optical sensor meets stringent safety and electromagnetic compatibility standards. Its shock resistance rating of 500 ms contributes to longevity by safeguarding against physical impacts during operation or installation.</p><p>Weighing just 60 grams and featuring a cable length of 2 meters, the Cx-400 series offers flexibility without compromising on sturdiness or ease of integration into existing systems. The rapid response time of less than 1 ms ensures quick detection capabilities essential for high-speed automation processes.</p><p>Furthermore, insulation resistance rated at 2 MOhm underscores its electrical safety profile by preventing unwanted current flow that could otherwise lead to malfunctions or hazards within connected circuits.</p><p>In summary, the Cx-400 series optical sensor combines durability with precision engineering suited for demanding applications across multiple industries where reliability cannot be compromised.</p>
