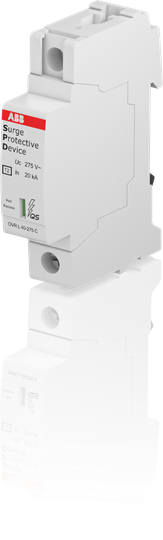

ABB OVR T2 40-275 P QS TYPE 2 40KA0 2CTB803871R2300

Product Code: 2CTB803871R2300

Surge protective devices SPD type 2 protect low-voltage consumer systems against surge voltages as they are tested as SPD type 2 according to IEC 61643-11. The devices are compatible with the System pro M compact series. The SPD with "TS" are optionally equipped with a auxiliary contact.

Technical Specifications

Brand ABB
Degree of Protection IP20
EAN 3660308519580
Height (mm) 80
Length (mm) 30
Mounting Type DIN-Rail
No. of Conductors 1
No. of Poles 1
Power Loss (W) 0.008
Rated Voltage AC (V) 230
Suitable For To protect the systems against the transient overvoltage (lightning)
Version Plug-in
Voltage Protection Level - Up (kV) 1.25
Weight (kg) 0.15
Width (mm) 120
