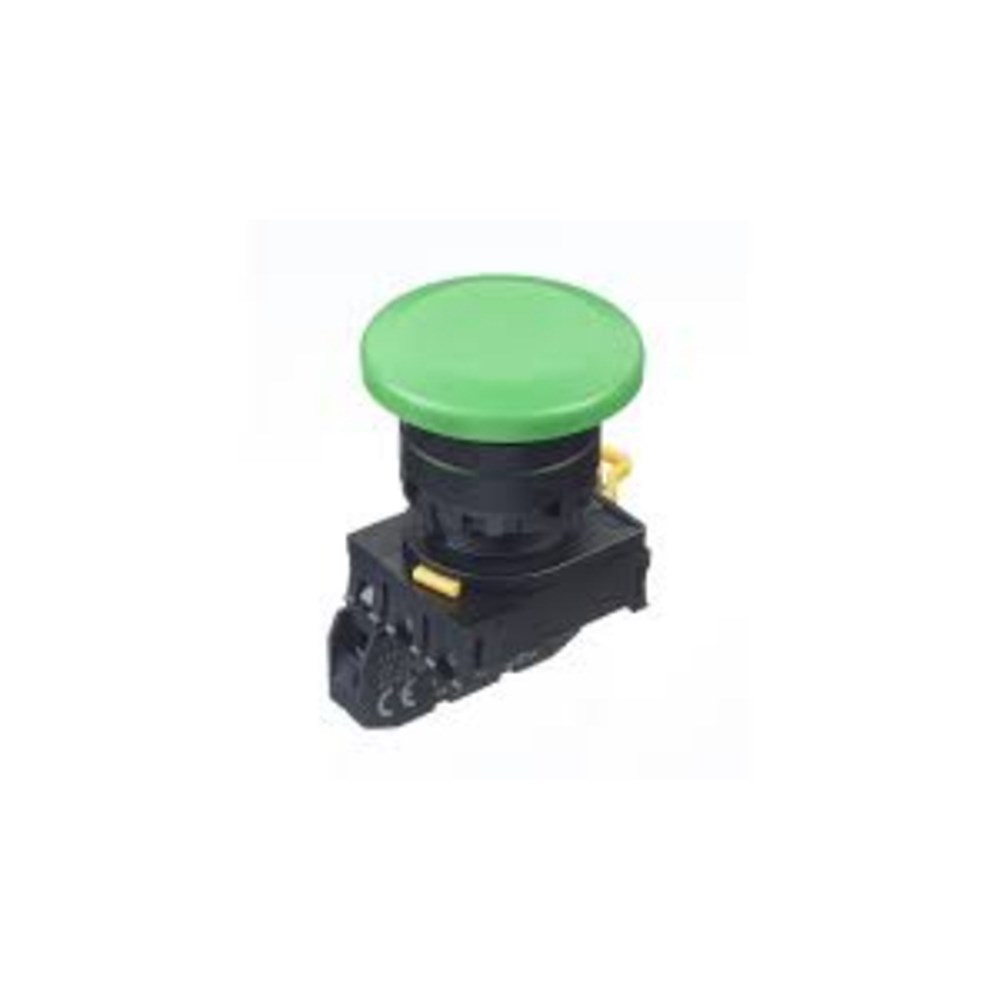

<p>The YW Series pushbutton offers a robust solution for industrial and commercial applications where reliability and durability are key considerations. This non-illuminated mushroom actuator, with its distinctive green button, is designed to meet rigorous operational demands while ensuring user safety and ease of use.</p><p>Measuring 30 mm in width, 41.4 mm in height, and 66.3 mm in depth, this pushbutton is compact yet substantial enough for confident operation. Its design includes a front degree of protection rated at IP65, making it dust-tight and protected against water jets from any direction—a crucial feature for environments where exposure to the elements is a concern. The terminal side has an IP20 rating which ensures basic protection against finger contact with live parts.</p><p>Engineered to withstand harsh conditions, this pushbutton operates effectively within temperatures ranging from -20&#176;C to 55&#176;C and can be stored safely between -40&#176;C and 85&#176;C. It also maintains performance under humidity levels of 45% to 85%, making it suitable for diverse climates.</p><p>The mechanical life of the device showcases its endurance: it supports up to 0.25 million operations with a single contact block configuration or up to 0.1 million operations when using a double contact block configuration. The silver contact material enhances conductivity while minimizing wear over time.</p><p>With a rated insulation voltage of 600 V and able to handle continuous currents up to 10 A, this pushbutton aligns well with high-demand electrical systems. The screw terminal type ensures secure connections that are easy to manage during installation or maintenance.</p><p>Safety standards are thoroughly addressed as evidenced by multiple certifications including cULus listing, CE marking, UKCA certification, and CCC certification—affirming compliance with international quality standards.</p><p>Vibration resistance from frequencies between 5-55 Hz coupled with shock resistance rated at 10 g/ms makes this product resilient against physical disturbances common in industrial settings.</p><p>The actuator’s mushroom shape provides an ergonomic advantage; its diameter measures at an accommodating size of 40 mm which fits comfortably into standard cutouts without additional modifications required—streamlining installation processes significantly.</p><p>Functionality includes maintained action with a release method that involves either pushing lock or pulling/turning reset actions—ensuring precise control over operations when needed most.</p><p>Incorporating plastic bezel material not only contributes towards weight reduction but also adds another layer of insulation enhancing overall safety attributes further still—all these features make YW Series Pushbuttons ideal candidates wherever reliable actuation solutions are demanded across various sectors globally!</p>
