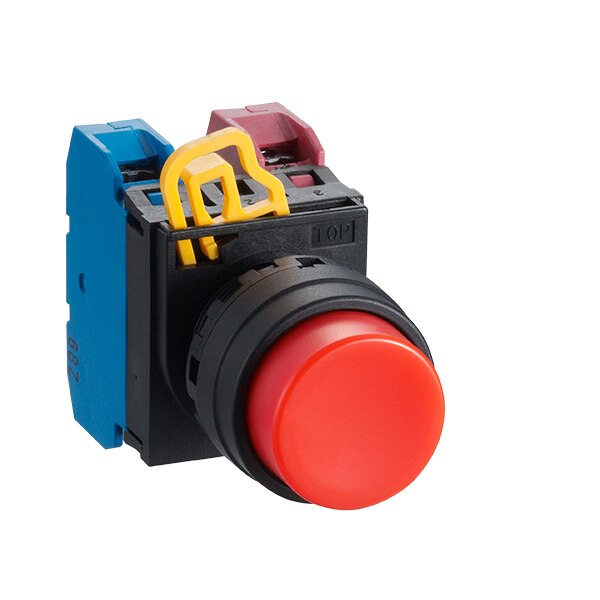

<p>When selecting a pushbutton for industrial or commercial applications, it&#39;s essential to focus on the technical specifications that ensure reliability and efficiency. The YW Series pushbutton is designed with these considerations in mind, offering robust performance under various conditions.</p><p>This non-illuminated pushbutton measures 30 mm in width, 41.4 mm in height, and 64.8 mm in depth, making it compact yet substantial enough for easy operation. It operates efficiently within a temperature range from -20 to 55 degrees Celsius and can be stored safely between -40 to 85 degrees Celsius. This versatility ensures that the device performs reliably across diverse environments.</p><p>The YW Series pushbutton features an extended actuator type with a maintained function and utilizes a pushlock pull/turn reset release method. Its contact configuration is set as 1NC (normally closed), using silver contacts known for excellent conductivity and durability.</p><p>Built to withstand challenging conditions, this pushbutton boasts IP65 protection at the front and IP20 at the terminal level, ensuring resistance against dust ingress and water jets while maintaining safety around electrical components. It meets rigorous standards being cULus listed, CE marked, UKCA certified, and CCC certified.</p><p>In terms of mechanical resilience, it offers vibration resistance from frequencies of 5-55 Hz and shock resistance up to 10 g/ms. Its mechanical life spans approximately 0.25 million operations for single contact blocks and about 0.1 million operations for double contact blocks—indicative of its long-term reliability.</p><p>The device&#39;s screw terminal type facilitates straightforward installation while supporting a rated insulation voltage of up to 600 V with an insulation resistance of over 100 MOhm—key factors for ensuring safe operation under load conditions reaching up to a rated continuous current of 10 A.</p><p>Aesthetically practical as well as functional, this red button fits into standard cutout sizes of diameter 22 mm—a common specification that simplifies integration into existing systems or control panels.</p><p>The bezel material is plastic which provides durability without compromising on weight or ease of use—a crucial consideration when frequent manual interaction is expected.</p><p>Overall humidity tolerance ranges from 45% to 85%, providing additional assurance that environmental factors won&#39;t impede functionality.</p><p>For those seeking reliable performance backed by comprehensive certifications in demanding settings such as manufacturing floors or commercial installations—the YW Series pushbutton stands out as an ideal choice without unnecessary complexity or embellishment.</p>
