Current Type	AC
Design of Control Element	Push Button
Icw (kA/3s) - Short-time Withstand Current Rating	30
Interlockable	Yes
Main Circuit Electrical Connection	Bolt Connection
Rated Short-time Withstand Current - Icw (kA/3s)	30
Brand	ABB
AC Voltage (V)	690
Component Type	Fixed
Current Rating (A)	1600
Degree of Protection	IP30
Dimensions (mm)	210W x 296H x 183D
EAN	8015644772512
Icw (kA/1s) - Short-time Withstand Current Rating	50
Iu - Uninterrupted Current Rating (A)	1600
Maximum Operational Voltage AC (V)	690
No. of Poles	3
Poles	3P
Power Loss (W)	201
Rated Current (A)	1600
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Current AC-21A 415V (A)	1600
Rated Operational Current AC-23A 380-415V (A)	1600
Rated Operational Voltage (V)	690
Rated Short-Time Withstand Current - Icw (kA)	50
Rated Short-time Withstand Current - Icw (kA/1s)	50
Rated Uninterrupted Current - Iu (A)	1600
Rated Voltage AC (V)	690
Suitable For	Distribution Board Installation
Type	Main Switch
Version	Fixed

Air Circuit Breakers

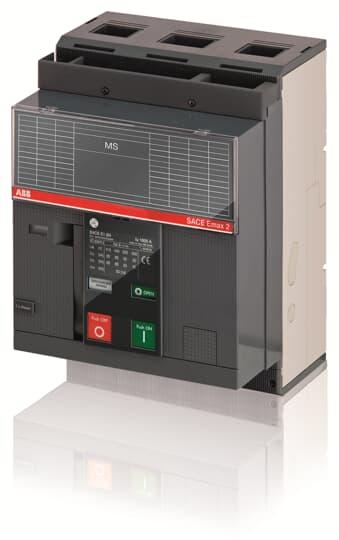

ABB E1.2N/MS 1600 3P F F 1SDA073401R1
