Motor Protection & Motor Starters

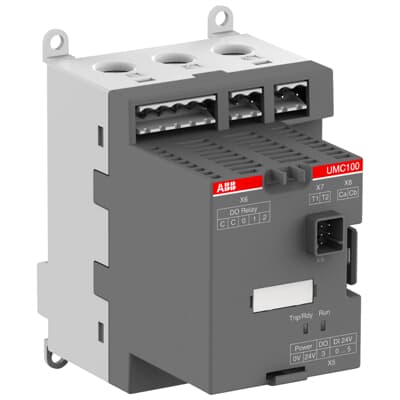

ABB UMC100.3 UC, SUPPLY 110-240 V AC/DC, 6DI, 4 DO, PTC INPUT UMC100.3UC

Product Code: UMC100.3UC

The intelligent motor controller UMC100.3 DC uses a 110...240 V AC/DC supply and is suitable to protect against overload. It can be connected to a variety of communication networks and has a wide range of additional parameters to maximize motor protection.

Technical Specifications

Rated Operational Current (A) 63
Supply Voltage Type AC/DC
Switching Type Mono Stable
Brand ABB
Communication Protocols PROFIBUS
Connection Type Through-feed technique
Degree of Protection IP20
Dimensions (mm) 70W x 106H x 107D
No. of Poles 3
Operational Temperature Range (°C) 0 to +60
Rated Control Supply Voltage AC/DC (V) 110 - 240
Rated Impulse Withstand Voltage (kV) 4
Rated Operational Voltage AC (V) 690
Rated Supply Voltage AC (V) 110
Terminal Type Screw Terminals
