Industrial Fuse Links

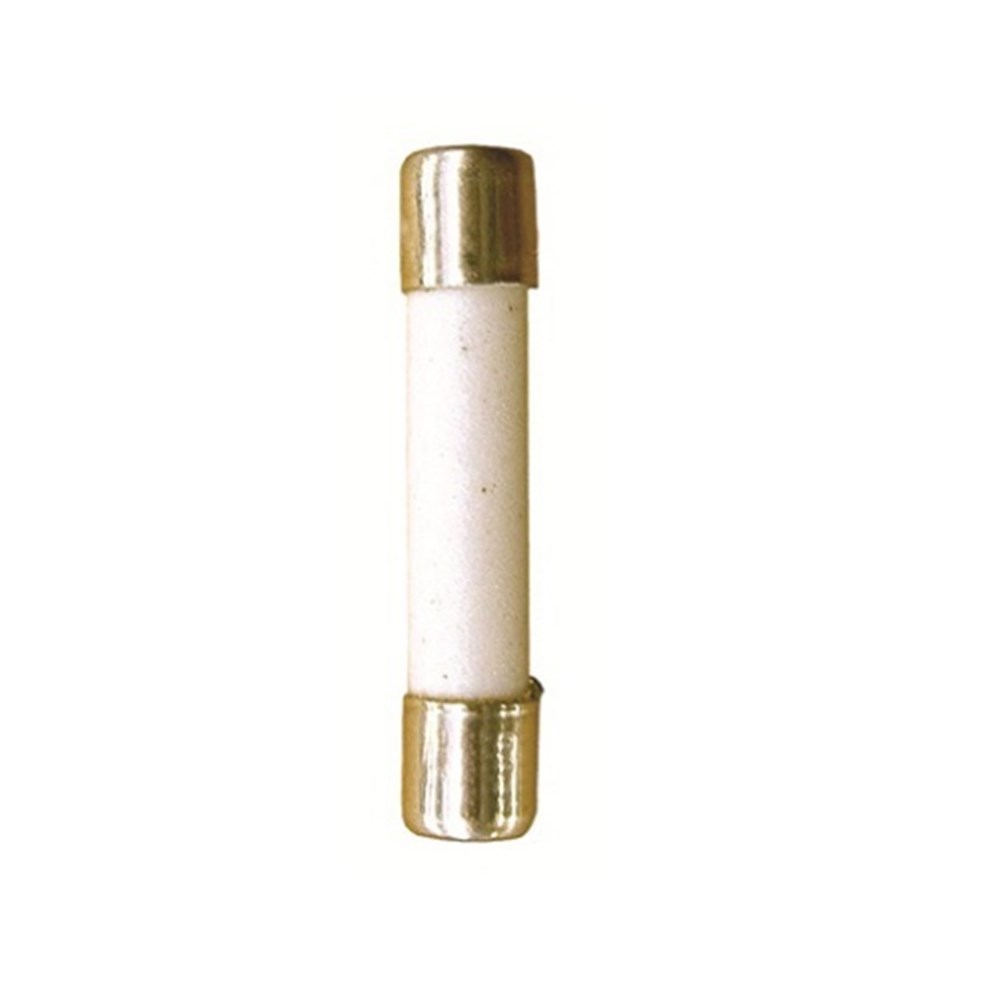

IPD AGDA6.3 MINIATURE FUSE LINK TYPE M205, 6.3A FAST ACTING CERAMIC 5X20mm

Product Code: AGDA6.3

The AGDA Series is a fast-acting, high breaking capacity ceramic tube type M205 miniature fuse link. It comes with a nickel-plated brass endcap and is designed to meet the IEC 60127-2 standard. This fuse has a voltage rating of 250VAC and a rated current of 6.3A. The Interrupting Rating at the rated voltage (50Hz) is 1500A.

Technical Specifications

Brand IPD
Body Size (mm) 5 x 20
Functionality Fast Acting
Interrupting Rating AC (A) 1500
Material Ceramic
Rated Current (A) 6.3
Rated Voltage AC (V) 250
