Industrial Fuse Links

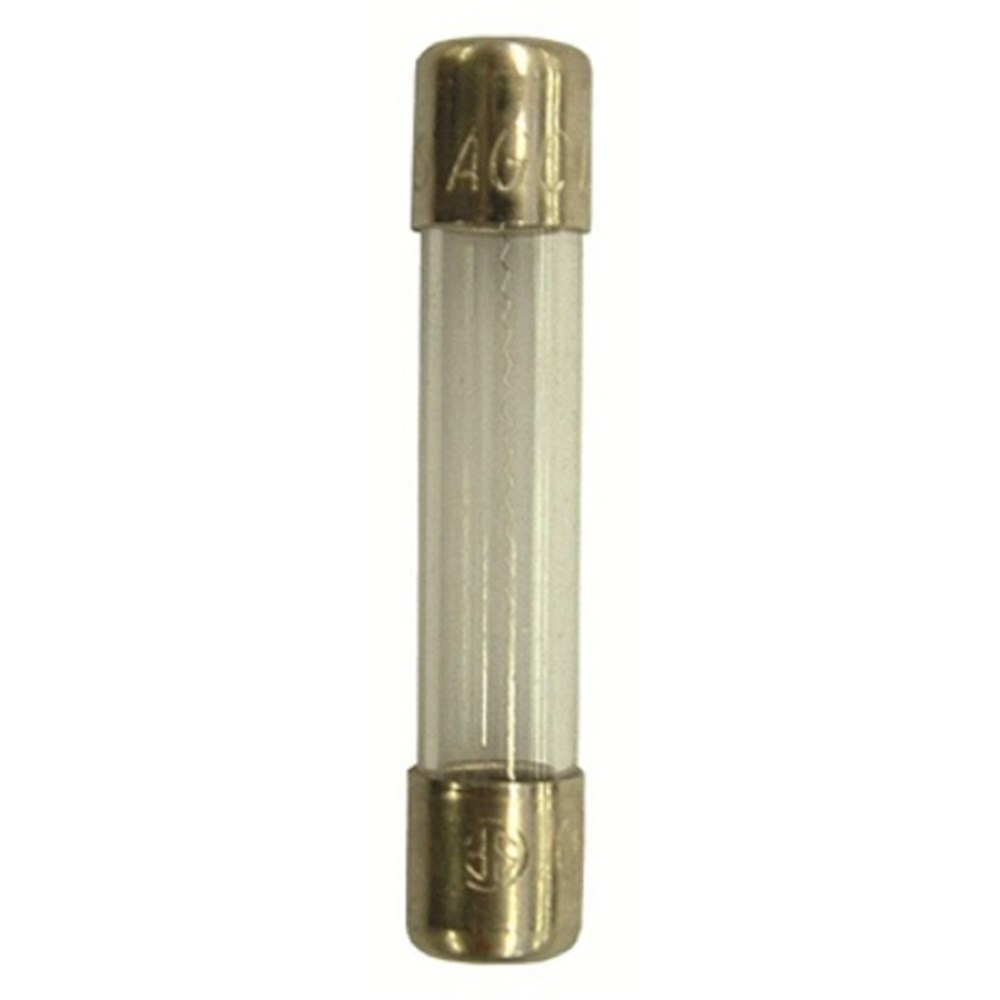

IPD MINIATURE FUSE LINK TYPE M205, 100mA SLOW BLOW GLASS 5X20mm AGDC100MA

Product Code: AGDC100MA

The AGDC Series slow blow glass tube type M205 miniature fuse link is a compact and reliable fuse designed to meet the standards of IEC 60127-2. It features a nickel-plated brass endcap for enhanced durability. With a voltage rating of 250VAC and a rated current of 100mA, this fuse is suitable for various applications. It has an interrupting rating of 35A at its rated voltage of 250VAC (50Hz).

Technical Specifications

Brand IPD
Body Size (mm) 5 x 20
Functionality Time Delay
Interrupting Rating AC (A) 35
Material Glass
Rated Current (A) 0.1
Rated Voltage AC (V) 250
Typical DC Cold Resistance (?) 2.8
