Product Code: MCBL-10

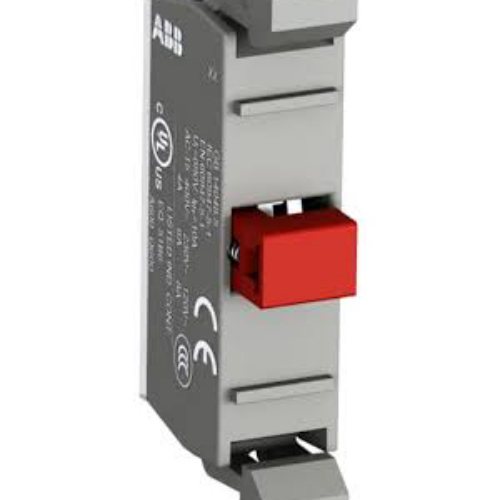

The MCBL-10 Contact Block is: - Non-illuminated - Micro switch contact block - Front mounting - silver gold plated (Ag/Au) - 1NO - 125V. This Contact Block is part of ABB's modular plastic range, the most versatile range with a high level of flexibility and market-leading electrical ratings. Engineered for total reliability, longer lifetime, and highest mechanical durability. Self-cleaning contacts ensure reliable operation without the need for maintenance, increasing uptime. A high degree of protection guarantees reliability in extreme environments. The innovative design simplifies the entire process, from selection to easy and quick, tool-free installation. The perfect solution for every application.

Brand	ABB
Rated Operational Current DC-13 24V (A)	0.3
Connecting Capacity	Flexible with Ferrule 1/2 x 0.5 - 1.5mm² Flexible with Insulated Ferrule 1/2 x 0.5 - 1.5mm² Flexible 1/2 x 0.5 - 1.5mm² Solid 1/2 x 0.5 - 1.5mm²
Accessory Type	Microswitch Contact Block
Ambient Temperature Range (°C)	-25 to 70
Connection Type	Screw Clamp
Degree of Protection	Terminals: IP20
Dimensions (mm)	10W x 44H x 15D
Illumination	Non-illuminated
Mounting Type	Front Mount
No. of Normally-open Contacts	1
Pollution Degree	3
Power Loss (W)	0.45
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	125
Rated Operational Voltage AC/DC (V)	125
Storage Temperature Range (°C)	-40 to 85
Suitable For	Pilot Devices
Terminal Type	Screw
Tightening Torque (Nm)	0.8
Weight (kg)	0.01
Wire Stripping Length (mm)	6
