Design of Control Element	Toggle
I - Short-circuit Current Setting I3 (A)	3150 - 6300
L - Overload Current Setting I1 (A)	441 - 630
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT5 Frame
Overload Release Current Setting (A)	252
Rated Instantaneous Short-Circuit Current - Ii (A)	3150
Trip Unit - Thermal Magnetic	TMA
Tripping Unit	TMA
Voltage (V)	690 AC
Brand	ABB
Breaking Capacity (kA)	50
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	630
Degree of Protection	IP20
Dimensions (mm)	140W x 205H x 103.5D
EAN	8056221004947
No. of Poles	3
Poles	3P
Power Loss (W)	47.8
Rated Current (A)	630
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	1000
Rated Uninterrupted Current - Iu (A)	630
Rated Voltage (V)	690
Standards and Approvals	IEC 60947-2
Trip Unit	TMA
Version	Fixed

Moulded Case Circuit Breakers

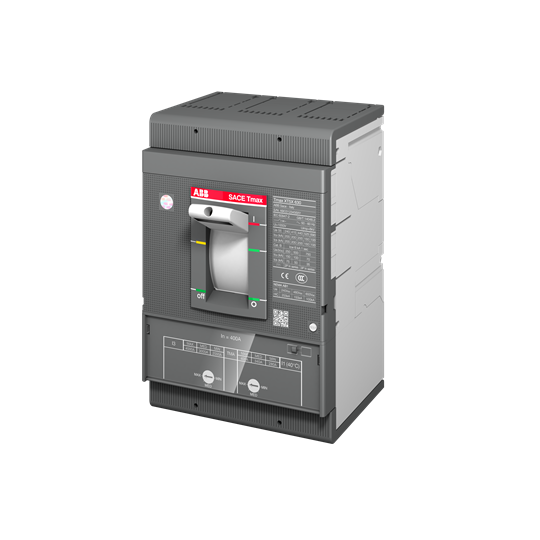

ABB XT5S 630 TMA 630-6300 3P F F 1SDA100417R1
