Brand	ABB
Design of Control Element	Toggle
I - Short-circuit Current Setting I3 (A)	250 - 2500
L - Overload Current Setting I1 (A)	100 - 250
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT5 Frame
Overload Release Current Setting (A)	100
Rated Instantaneous Short-Circuit Current - Ii (A)	250
S - Selective Short-circuit Current Setting I2 (A)	250 - 2500
Tripping Unit	EKIP DIP LSI
Voltage (V)	690 AC
Breaking Capacity (kA)	36
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	250
Degree of Protection	IP20
Dimensions (mm)	140W x 205H x 103.5D
EAN	8056221004336
No. of Poles	3
Poles	3P
Power Loss (W)	8
Rated Current (A)	250
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	1000
Rated Uninterrupted Current - Iu (A)	400
Rated Voltage (V)	690
Standards and Approvals	IEC 60947-2
Trip Unit	EKIP DIP LSI
Trip Unit - Electronic	EKIP DIP LSI
Version	Fixed

Moulded Case Circuit Breakers

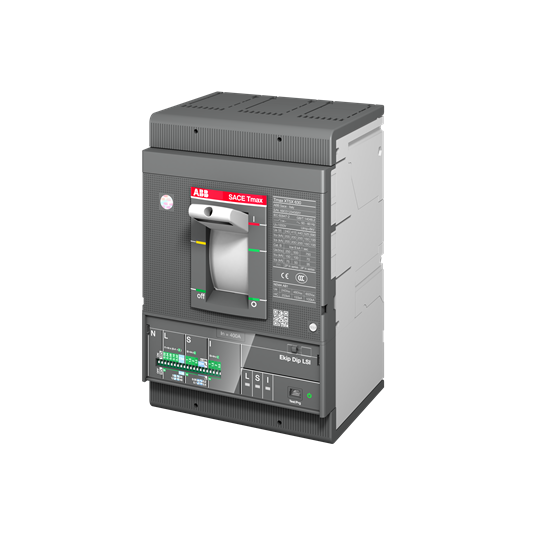

ABB XT5N 400 EKIP DIP LSI IN=250 3P F F 1SDA100356R1
