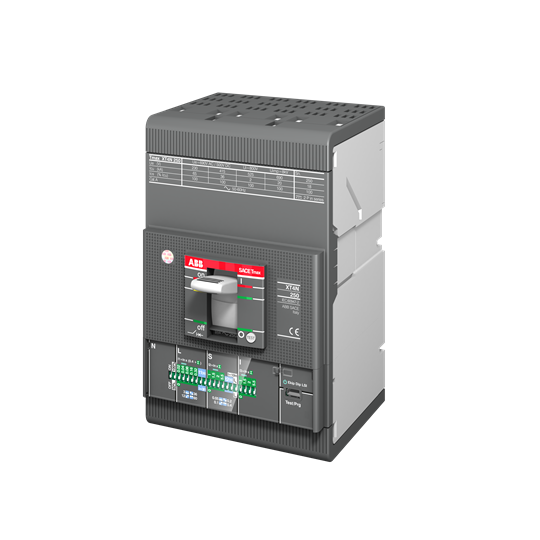

<p>When selecting a Molded Case Circuit Breaker (MCCB) for industrial or commercial applications, understanding the technical specifications is crucial. This MCCB is designed to deliver reliable performance and safety, making it a solid choice for various settings.</p><p>With a rated current of 100 A, this MCCB efficiently handles electrical loads typical in many industrial environments. It boasts a robust rated impulse withstand voltage of 8 kV and an insulation voltage of 1000 V, ensuring resilience against electrical surges and maintaining integrity under high-voltage conditions.</p><p>The device operates at a rated voltage of 690 VAC and supports both 50 Hz and 60 Hz frequencies, offering flexibility across different power systems. Equipped with an Ekip Dip LSI trip unit, it provides precise protection through its electronic release type (EL), enhancing operational reliability by responding accurately to overloads or faults.</p><p>Its breaking capacity stands at 15 kA, which is suitable for handling fault conditions effectively without compromising safety. The MCCB features three poles and utilizes a front connection type with bolt terminals, facilitating straightforward installation in various setups.</p><p>In terms of dimensions, the MCCB has a width of 105 mm and weighs approximately 2.5 kg—compact enough to fit into standard control panels while remaining manageable during installation. The degree of protection is rated at IP20, indicating basic protection against solid objects larger than 12 mm but not against water ingress.</p><p>Adhering to IEC60947-2 standards ensures compliance with international norms for low-voltage switchgear components. Additionally, its compatibility with XT4H systems allows seamless integration into existing electrical infrastructures.</p><p>The main circuit connecting capacity ranges from 85 to 200 square millimeters, accommodating diverse conductor sizes typically found in industrial circuits. With power loss measured at just 4.2 W during operation, this MCCB promotes energy efficiency within your system.</p><p>Overall, this MCCB combines essential features that meet demanding requirements while maintaining ease-of-use and compliance with industry standards—a reliable component for safeguarding your electrical installations.</p>
