Brand	ABB
Design of Control Element	Toggle
I - Short-circuit Current Setting I3 (A)	2000
L - Overload Current Setting I1 (A)	140 - 200
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT3 Frame
Overload Release Current Setting (A)	140
Rated Instantaneous Short-Circuit Current - Ii (A)	2000
Trip Unit - Thermal Magnetic	TMD
Tripping Unit	TMD
Voltage (V)	690 AC
Breaking Capacity (kA)	50
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	200
Degree of Protection	IP20
Dimensions (mm)	105W x 150H x 70D
EAN	8015644021269
No. of Poles	3
Poles	3P
Power Loss (W)	13.2
Rated Current (A)	200
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	800
Rated Uninterrupted Current - Iu (A)	250
Rated Voltage (V)	690
Standards and Approvals	IEC 60947-2
Trip Unit	TMD
Version	Fixed

Moulded Case Circuit Breakers

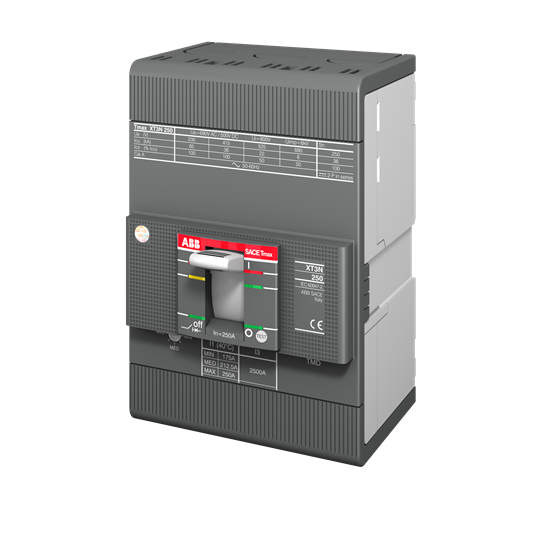

ABB XT3S 250 TMD 200-2000 3P F F 1SDA068220R1
