ABB XT3N 250 TMD 100-1000 3P F F 1SDA068055R1
Zoom

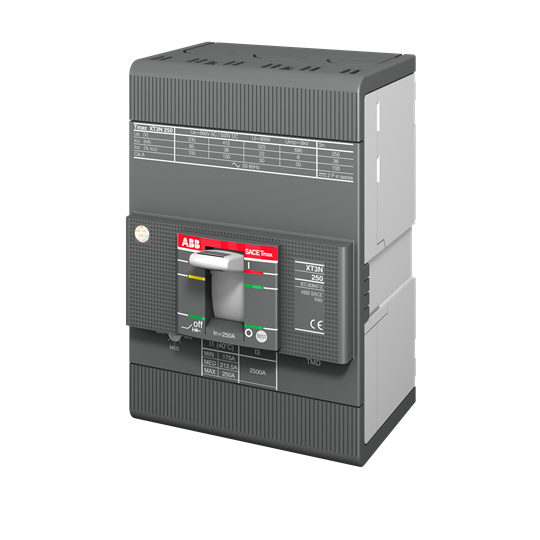

ABB XT3N 250 TMD 100-1000 3P F F 1SDA068055R1
Product Code: 1SDA068055R1
C.BREAKER TMAX XT3N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 100-1000 A
Technical Specifications
Design of Control Element
Toggle
I - Short-circuit Current Setting I3 (A)
1000
L - Overload Current Setting I1 (A)
70 - 100
Main Circuit Electrical Connection
Bolt Connection
Main Current Circuit Connection Position
Front Side
MCCB Type
XT3 Frame
Overload Release Current Setting (A)
70
Rated Instantaneous Short-Circuit Current - Ii (A)
1000
Trip Unit - Thermal Magnetic
TMD
Tripping Unit
TMD
Voltage (V)
690 AC
Brand
ABB
Breaking Capacity (kA)
36
Breaking Capacity 415V AC - Icu (kA)
36
Current Rating (A)
100
Degree of Protection
IP20
Dimensions (mm)
105W x 150H x 70D
EAN
8015644019266
No. of Poles
3
Poles
3P
Power Loss (W)
5.6
Rated Current (A)
100
Rated Frequency (Hz)
50/60
Rated Insulation Voltage (V)
800
Rated Uninterrupted Current - Iu (A)
250
Rated Voltage (V)
690
Standards and Approvals
IEC 60947-2
Trip Unit
TMD
Version
Fixed
Documents
Datasheet
Document
IPD Product Catalogue V17
