Design of Control Element	Toggle
I - Short-circuit Current Setting I3 (A)	160 - 1600
L - Overload Current Setting I1 (A)	64 - 160
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT2 Frame
Rated Instantaneous Short-Circuit Current - Ii (A)	160
S - Selective Short-circuit Current Setting I2 (A)	160 - 1600
Tripping Unit	EKIP DIP LSI
Voltage (V)	690 AC
Brand	ABB
Breaking Capacity (kA)	70
Breaking Capacity 415V AC - Icu (kA)	70
Current Rating (A)	160
Degree of Protection	IP20
Dimensions (mm)	90W x 130H x 82.5D
EAN	8015644017675
No. of Poles	3
Poles	3P
Power Loss (W)	10.8
Rated Current (A)	160
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	1000
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Standards and Approvals	IEC 60947-2
Trip Unit	EKIP DIP LSI
Trip Unit - Electronic	EKIP DIP LSI
Version	Fixed

Moulded Case Circuit Breakers

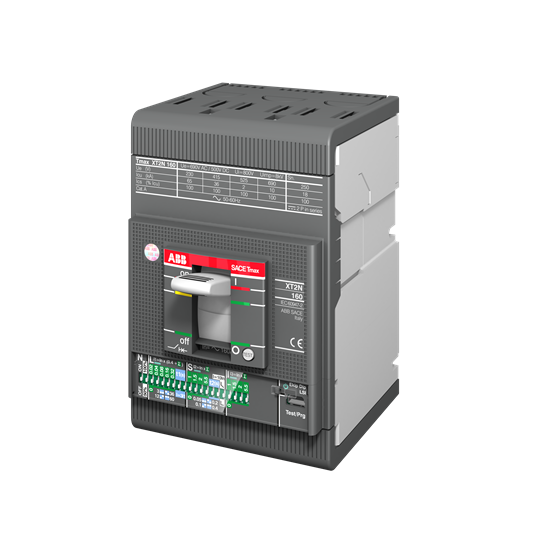

ABB XT2H 160 EKIP LSI IN=160A 3P F F 1SDA067871R1
