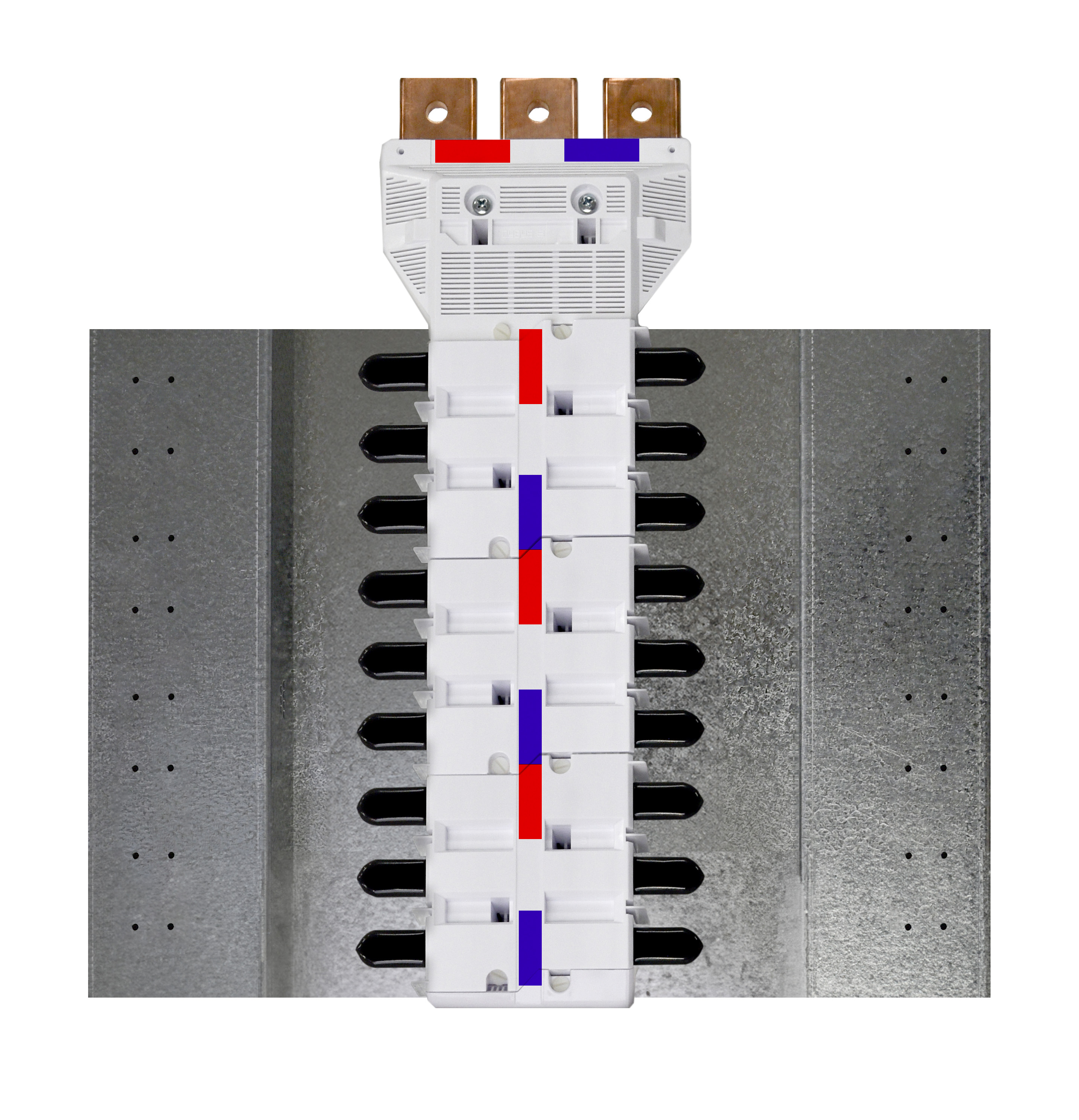

IPD NY80XT4SD18 NYBUS CHASSIS 800A 18P SINGLE FEED DOUBLE SIDED XT4

Product Code: NY80XT4SD18

The NYBUS chassis is designed for use with XT3 and XT4 ABB MCCBs. It has a current rating of 800A and features 18 poles. The chassis is single feed and double sided, providing efficient power distribution.

Technical Specifications

To Suit ABB MCCB - XT3, XT4
Brand IPD
Busbar Cross Section (mm²) 8 X 40
Current Rating (A) 800
Feed Type Top/Bottom Feed
Icw (kA/1s) - Short-time Withstand Current Rating 50
No. of Poles 18
Poles 18
Rated Current (A) 800
Rated Short-time Withstand Current - Icw (kA/1s) 50
Standards and Approvals Tested to AS/NZS 61439.1:2016
Suitable For XT3, XT4
Type of Feed Top/Bottom Feed
