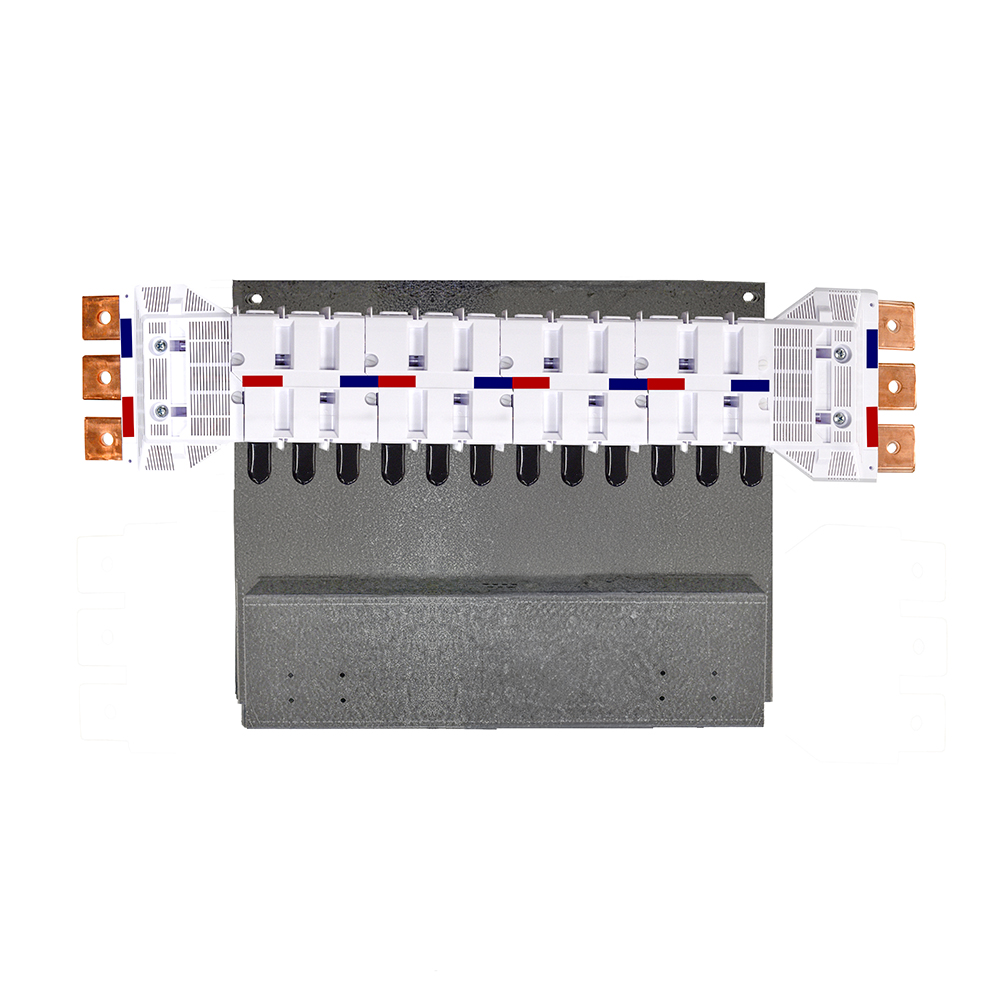

IPD NY80XT4US12 NYBUS CHASSIS 800A 12P UNIVERSAL FEED SINGLE SIDED XT4

Product Code: NY80XT4US12

The NYBUS chassis is designed for use with XT3 and XT4 ABB MCCBs. It has a 800A rating and features a single-sided universal feed. The chassis has 12 poles, making it suitable for various applications.

Technical Specifications

To Suit ABB MCCB - XT3, XT4
Brand IPD
Busbar Cross Section (mm²) 8 X 40
Current Rating (A) 800
Feed Type Universal Feed
Icw (kA/1s) - Short-time Withstand Current Rating 50
No. of Poles 12
Poles 12
Rated Current (A) 800
Rated Short-time Withstand Current - Icw (kA/1s) 50
Standards and Approvals Tested to AS/NZS 61439.1:2016
Suitable For XT3, XT4
Type of Feed Universal Feed
