Products

Chassis Systems

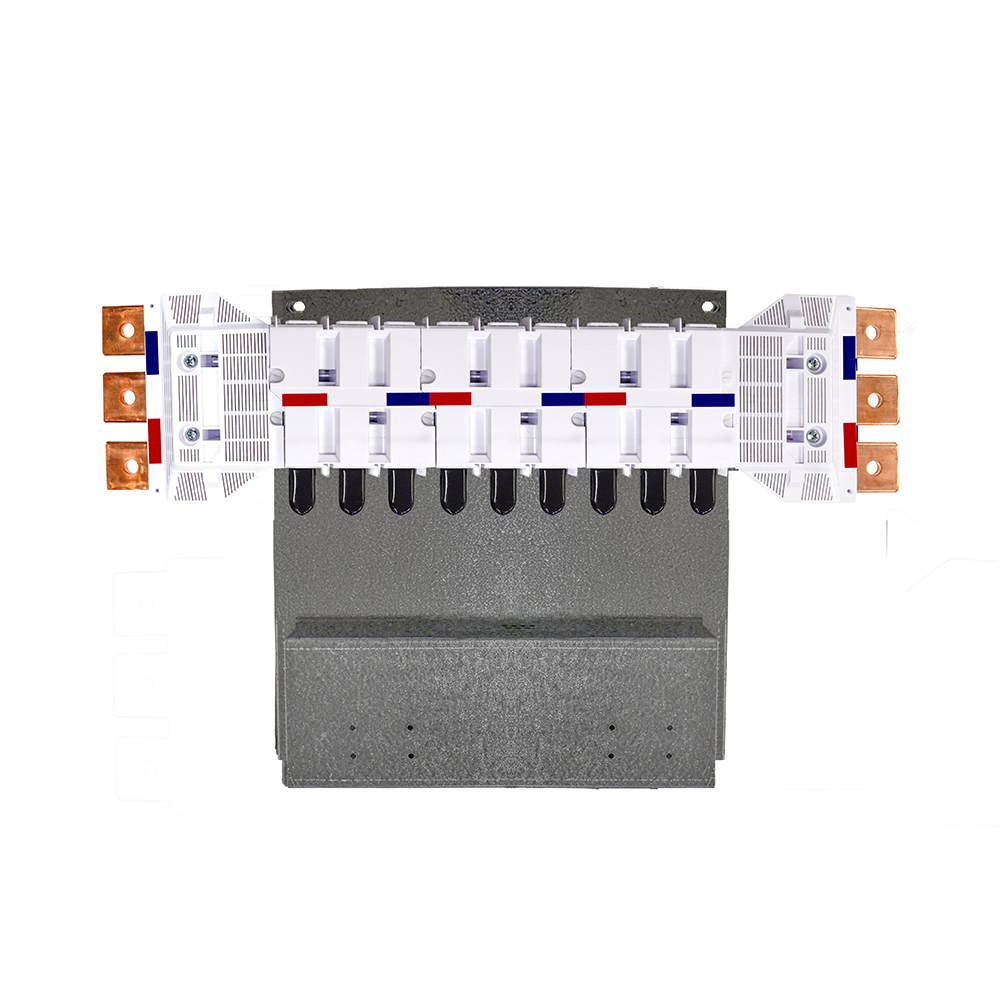

IPD 630A SINGLE-FEED TOP RIGHT NYBUS CHASSIS, 9 POLE FOR XT4 MCCB NY63XT4SR09

Product Code: NY63XT4SR09

Technical Specifications

To Suit ABB MCCB - XT3, XT4
Brand IPD
Current Rating (A) 630
Feed Type Right Top Feed / Left Bottom Feed
Icw (kA/1s) - Short-time Withstand Current Rating 36
No. of Poles 9
Poles 9
Rated Current (A) 630
Rated Frequency (Hz) 50/60
Rated Short-time Withstand Current - Icw (kA/1s) 36
Standards and Approvals Tested to AS/NZS 61439.1:2016
Suitable For XT3, XT4
Type of Feed Top - Right / Bottom - Left
