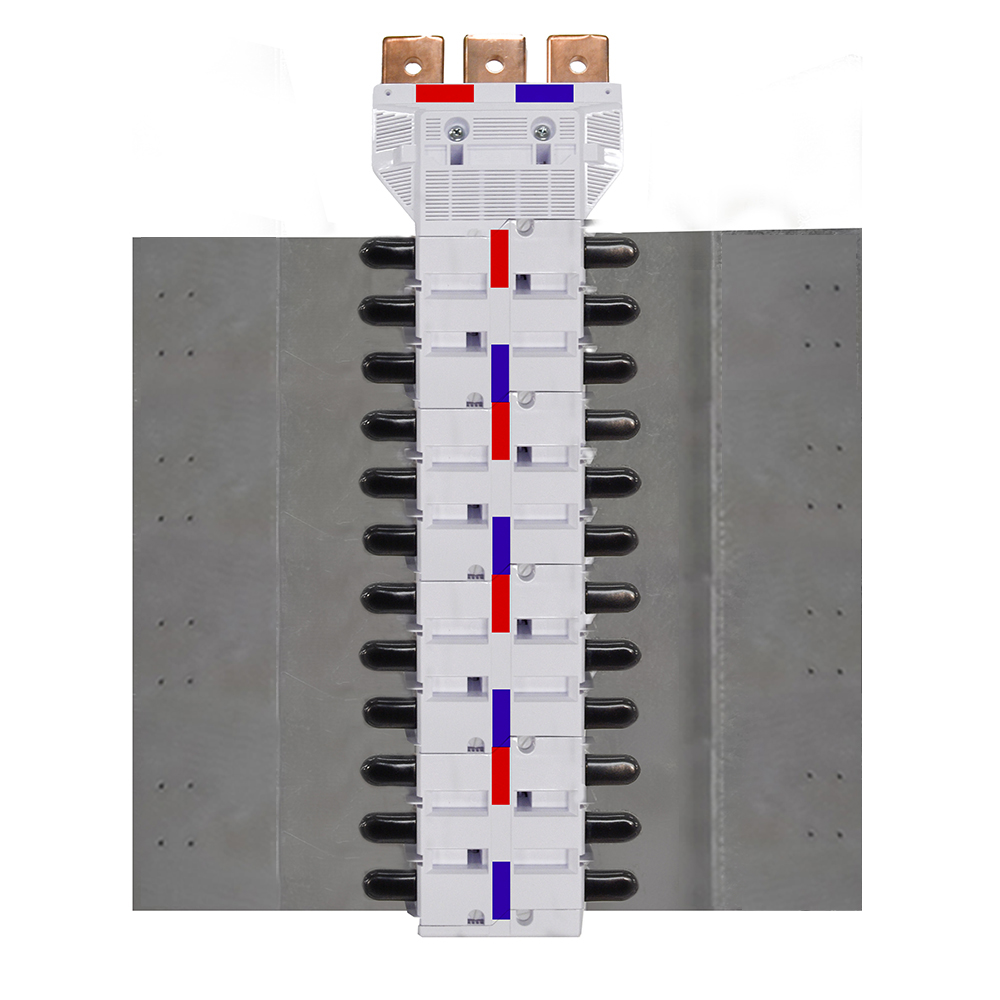

IPD NY63XT4SD24 NYBUS CHASSIS 630A 24 POLE SINGLE FEED DOUBLE SIDED XT4
Zoom
IPD NY63XT4SD24 NYBUS CHASSIS 630A 24 POLE SINGLE FEED DOUBLE SIDED XT4
Product Code: NY63XT4SD24
The NYBUS chassis is designed for use with XT3 and XT4 ABB MCCBs. It has a 630A rating and features 24 poles, with a single feed on each side.
Technical Specifications
To Suit
ABB MCCB - XT3, XT4
Brand
IPD
Busbar Cross Section (mm²)
6.4 X 40
Current Rating (A)
630
Feed Type
Top/Bottom Feed
Icw (kA/1s) - Short-time Withstand Current Rating
36
No. of Poles
24
Poles
24
Rated Current (A)
630
Rated Short-time Withstand Current - Icw (kA/1s)
36
Standards and Approvals
Tested to AS/NZS 61439.1:2016
Suitable For
XT3, XT4
Type of Feed
Top/Bottom Feed
Documents
Datasheet
IPD Product Catalogue V17
