Chassis Systems

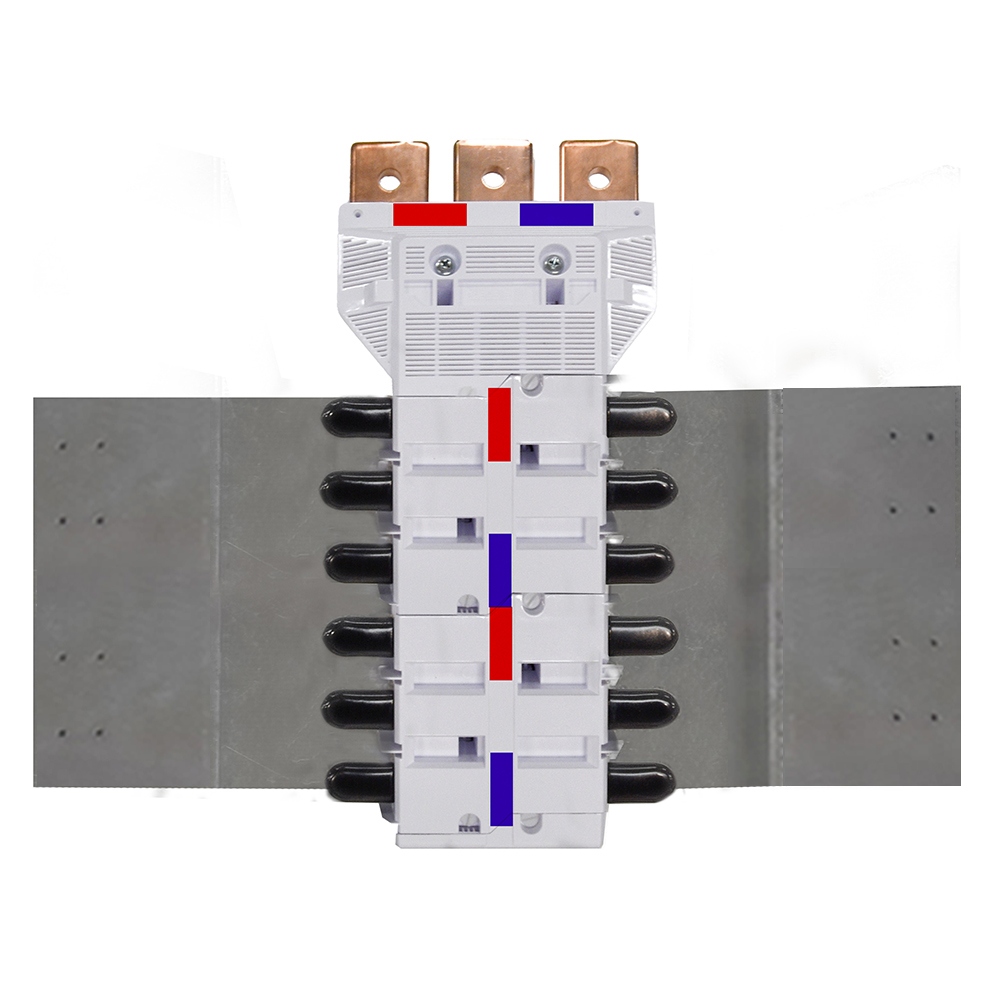

IPD NY63XT4SD12 NYBUS CHASSIS 630A 12 POLE SINGLE FEED DOUBLE SIDED XT4

Product Code: NY63XT4SD12

The NYBUS chassis is designed for use with XT3 and XT4 ABB MCCBs. It has a 630A rating and features 12 poles, with a single feed on each side. This chassis provides a reliable and efficient solution for managing power distribution in industrial applications.

Technical Specifications

To Suit ABB MCCB - XT3, XT4
Brand IPD
Busbar Cross Section (mm²) 6.4 X 40
Current Rating (A) 630
Feed Type Top/Bottom Feed
Icw (kA/1s) - Short-time Withstand Current Rating 36
No. of Poles 12
Poles 12
Rated Current (A) 630
Rated Short-time Withstand Current - Icw (kA/1s) 36
Standards and Approvals Tested to AS/NZS 61439.1:2016
Suitable For XT3, XT4
Type of Feed Top/Bottom Feed

Documents
