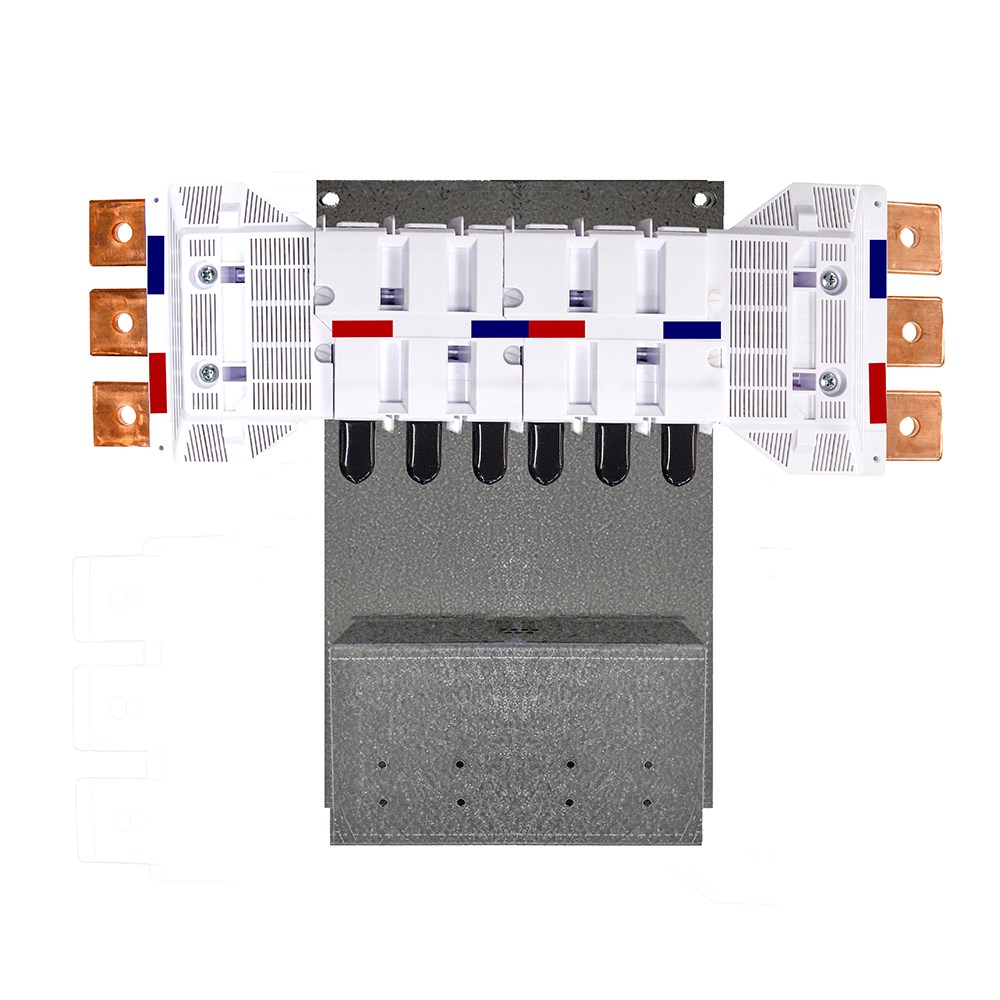

IPD NY80XT2US06 NYBUS CHASSIS 800A 6P UNIVERSAL FEED SINGLE SIDED XT2

Product Code: NY80XT2US06

The NYBUS chassis is designed for use with the XT2 ABB MCCB. It has a 800A rating and features 6 poles. The chassis is single sided and supports universal feed.

Technical Specifications

To Suit ABB MCCB - XT2
Brand IPD
Busbar Cross Section (mm²) 8 X 40
Current Rating (A) 800
Feed Type Universal Feed
Icw (kA/1s) - Short-time Withstand Current Rating 50
No. of Poles 6
Poles 6
Rated Current (A) 800
Rated Short-time Withstand Current - Icw (kA/1s) 50
Standards and Approvals Tested to AS/NZS 61439.1:2016
Suitable For XT2
Type of Feed Universal Feed
