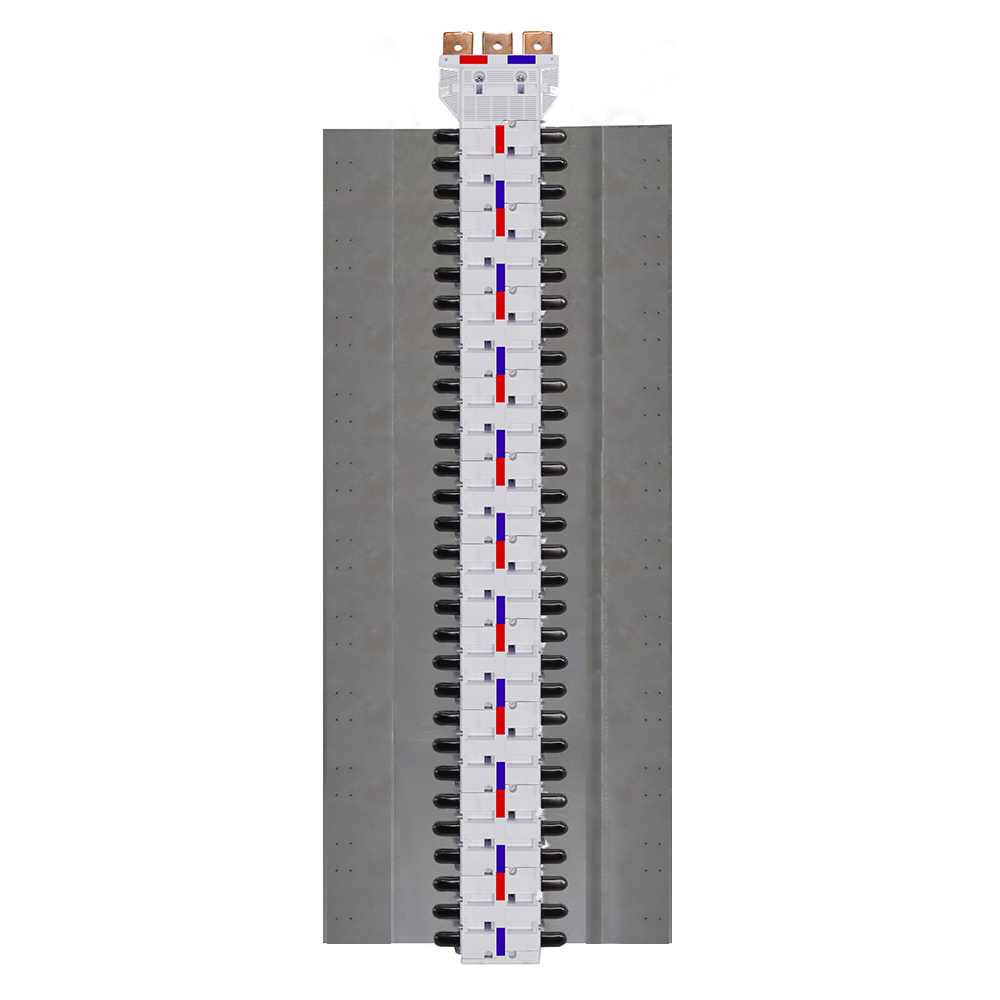

IPD NY63XT2SD60 NYBUS CHASSIS 630A 60 POLE SINGLE FEED DOUBLE SIDED XT2

Product Code: NY63XT2SD60

The NYBUS chassis is designed for use with the XT2 ABB MCCB. It has a 630A rating and features 60 poles. This chassis is single feed and double sided, providing efficient power distribution.

Technical Specifications

To Suit ABB MCCB - XT2
Brand IPD
Busbar Cross Section (mm²) 6.4 X 40
Current Rating (A) 630
Feed Type Top/Bottom Feed
Icw (kA/1s) - Short-time Withstand Current Rating 36
No. of Poles 60
Poles 60
Rated Current (A) 630
Rated Short-time Withstand Current - Icw (kA/1s) 36
Standards and Approvals Tested to AS/NZS 61439.1:2016
Suitable For XT2
Type of Feed Top/Bottom Feed
