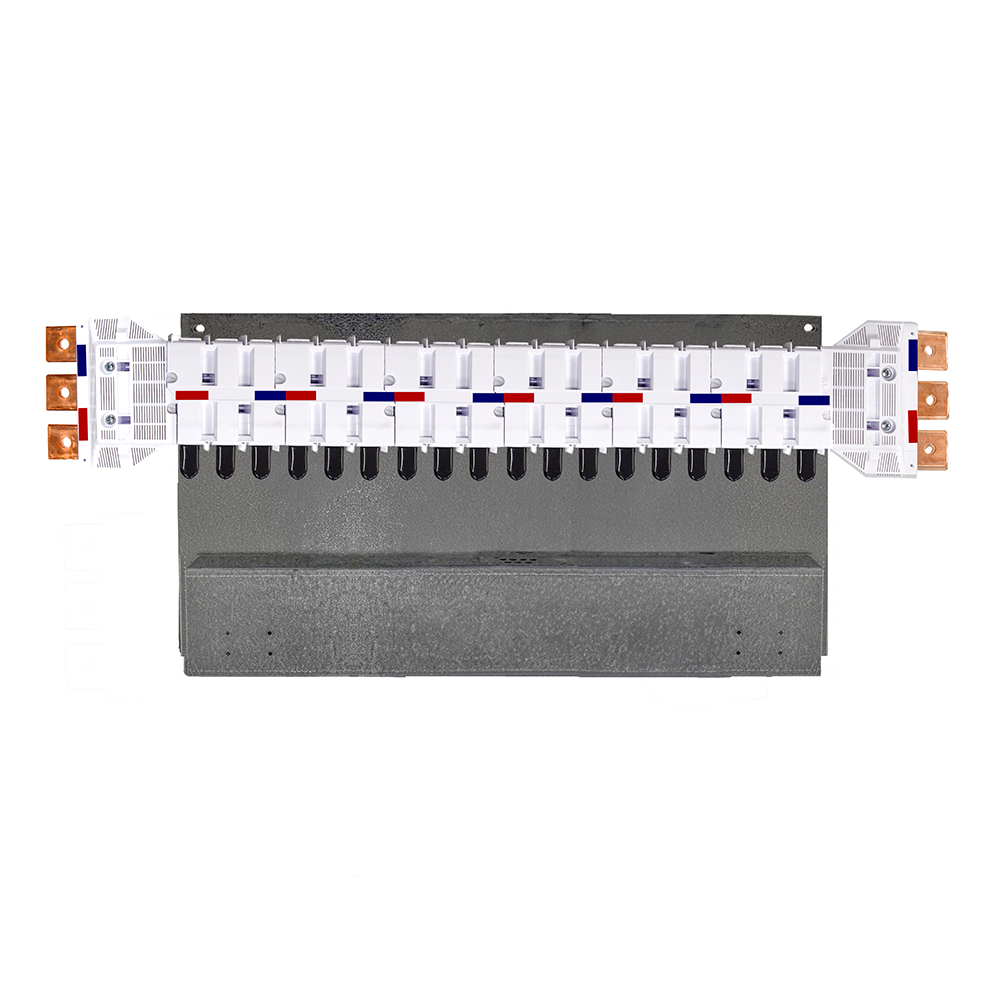

IPD NY63XT2US18 NYBUS CHASSIS 630A 18 POLE UNIVERSAL FEED SINGLE SIDED XT2

Product Code: NY63XT2US18

The NYBUS chassis is designed for use with the XT2 ABB MCCB. It has a 630A rating and features 18 poles. This universal feed chassis is single sided, providing convenient installation and maintenance options.

Technical Specifications

To Suit ABB MCCB - XT2
Brand IPD
Busbar Cross Section (mm²) 6.4 X 40
Current Rating (A) 630
Feed Type Universal Feed
Icw (kA/1s) - Short-time Withstand Current Rating 36
No. of Poles 18
Poles 18
Rated Current (A) 630
Rated Short-time Withstand Current - Icw (kA/1s) 36
Standards and Approvals Tested to AS/NZS 61439.1:2016
Suitable For XT2
Type of Feed Universal Feed
