Chassis Systems

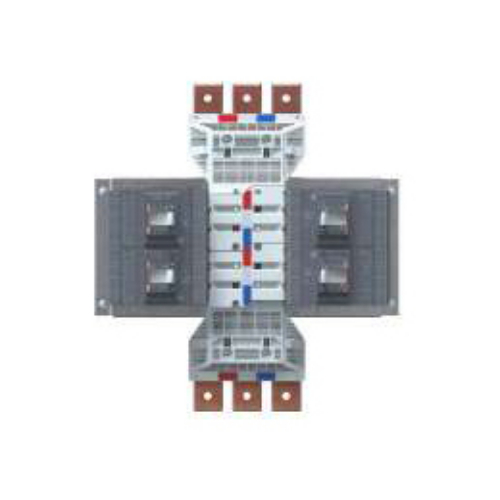

IPD NY80XT1SD06 NYBUS CHASSIS 800A 6 POLE SINGLE FEED DOUBLE SIDED XT1

Product Code: NY80XT1SD06

The NYBUS chassis is designed for use with the XT1 ABB MCCB. It has a current rating of 800A and features 6 poles. The chassis is single feed and double sided.

Technical Specifications

To Suit ABB MCCB - XT1
Brand IPD
Busbar Cross Section (mm²) 8 X 40
Current Rating (A) 800
Feed Type Top/Bottom Feed
Icw (kA/1s) - Short-time Withstand Current Rating 50
No. of Poles 6
Poles 6
Rated Current (A) 800
Rated Short-time Withstand Current - Icw (kA/1s) 50
Standards and Approvals Tested to AS/NZS 61439.1:2016
Suitable For XT1
Type of Feed Top/Bottom Feed
