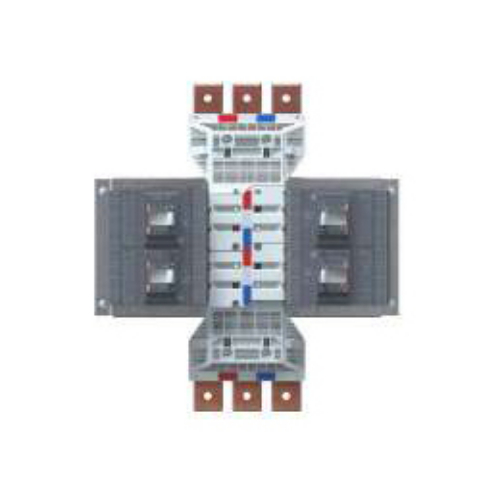

IPD NY63XT1SD30 NYBUS CHASSIS 630A 30 POLE SINGLE FEED DOUBLE SIDED XT1

Product Code: NY63XT1SD30

The NYBUS chassis is designed for use with the XT1 ABB MCCB. It has a 630A rating and features 30 poles, allowing for single feed double sided connections.

Technical Specifications

To Suit ABB MCCB - XT1
Brand IPD
Busbar Cross Section (mm²) 6.4 X 40
Current Rating (A) 630
Feed Type Top/Bottom Feed
Icw (kA/1s) - Short-time Withstand Current Rating 36
No. of Poles 30
Poles 30
Rated Current (A) 630
Rated Short-time Withstand Current - Icw (kA/1s) 36
Standards and Approvals Tested to AS/NZS 61439.1:2016
Suitable For XT1
Type of Feed Top/Bottom Feed
