To Suit	ABB MCCB - XT1
Brand	IPD
Busbar Cross Section (mm²)	6.4 X 40
Current Rating (A)	630
Feed Type	Right Top Feed / Left Bottom Feed
Icw (kA/1s) - Short-time Withstand Current Rating	36
Rated Current (A)	630
Rated Short-time Withstand Current - Icw (kA/1s)	36
Standards and Approvals	Tested to AS/NZS 61439.1:2016
Suitable For	XT1
Type of Feed	Top - Right / Bottom - Left

Chassis Systems

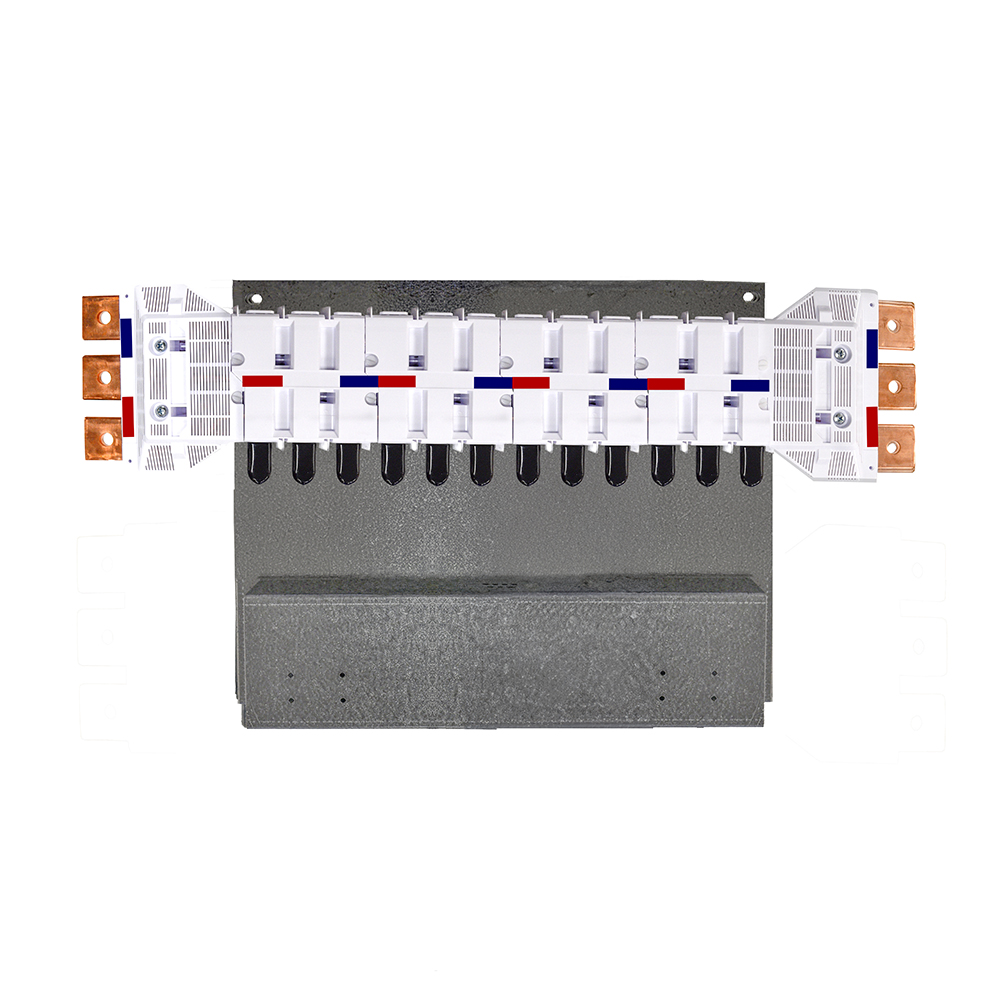

IPD NY63XT1SR12 NYBUS CHASSIS 630A 12P SINGLE SIDED RIGHT,TOP FEED/LEFT,BOTTOM FEED
