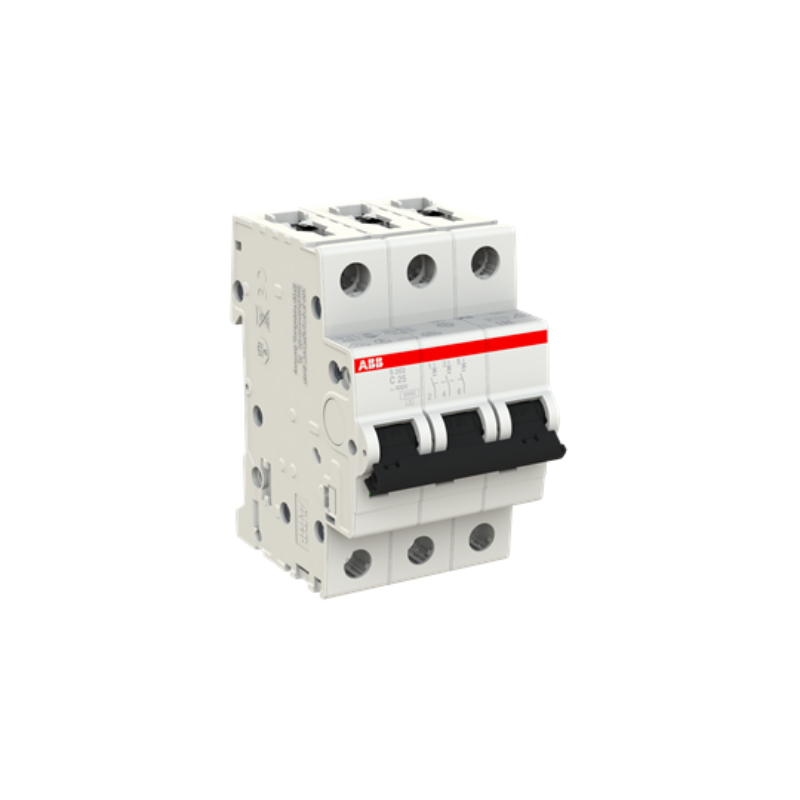

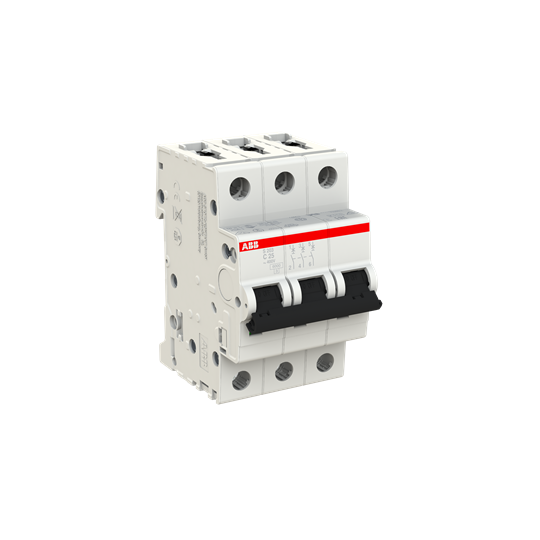

<p>The S200 Series MCB is a robust choice for those in the industrial and commercial sectors seeking reliable circuit protection. With its 25 A rated current, this miniature circuit breaker (MCB) effectively safeguards electrical circuits from overloads and short circuits. It operates efficiently within a voltage range of 400/415 VAC, making it suitable for various applications.</p><p>Engineered to withstand harsh conditions, this MCB boasts an impressive rated impulse withstand voltage of 4 kV and insulation voltage of 440 V. Its breaking capacity stands at a solid 10 kA at 400 VAC, ensuring dependable performance under fault conditions. The device&#39;s power loss is minimal at just 3.2 W, enhancing energy efficiency.</p><p>Designed with practicality in mind, the S200 Series features a compact form factor with dimensions of 52.5 mm in width, 88 mm in height, and a depth of 69 mm. This makes it easy to integrate into existing setups without taking up unnecessary space on the DIN rail mount.</p><p>The product supports screw clamp terminals that accommodate cable cross sections up to 35 sq-mm both top and bottom, providing flexibility during installation. The recommended tightening torque for these terminals is set at 2.8 N-m to ensure secure connections.</p><p>Durability is another hallmark of this MCB; it offers an electrical durability rating of up to 20,000 cycles—a testament to its long-lasting performance in demanding environments. The degree of protection is rated at IP20 with pollution degree IP3, safeguarding against foreign objects like dust while maintaining operational integrity.</p><p>Conforming to global standards such as AS/NZS 60898-1, AS/NZS 60947-2, and UL1077 highlights its compliance with rigorous safety protocols. The curve type C characteristic ensures optimal tripping behavior suited for typical commercial loads.</p><p>This model operates over a wide ambient temperature range from -25&#176;C to +55&#176;C during operation and can be stored safely between -40&#176;C and +70&#176;C—ideal for varied Australian climates.</p><p>Its housing comes in RAL7035 grey color which blends well into most settings while maintaining professional aesthetics. Additionally, it accommodates bulbar cross sections up to10 sq-mm both top and bottom further complementing its versatile application potential across different installations or upgrades where space constraints exist but reliability cannot be compromised upon!</p>
