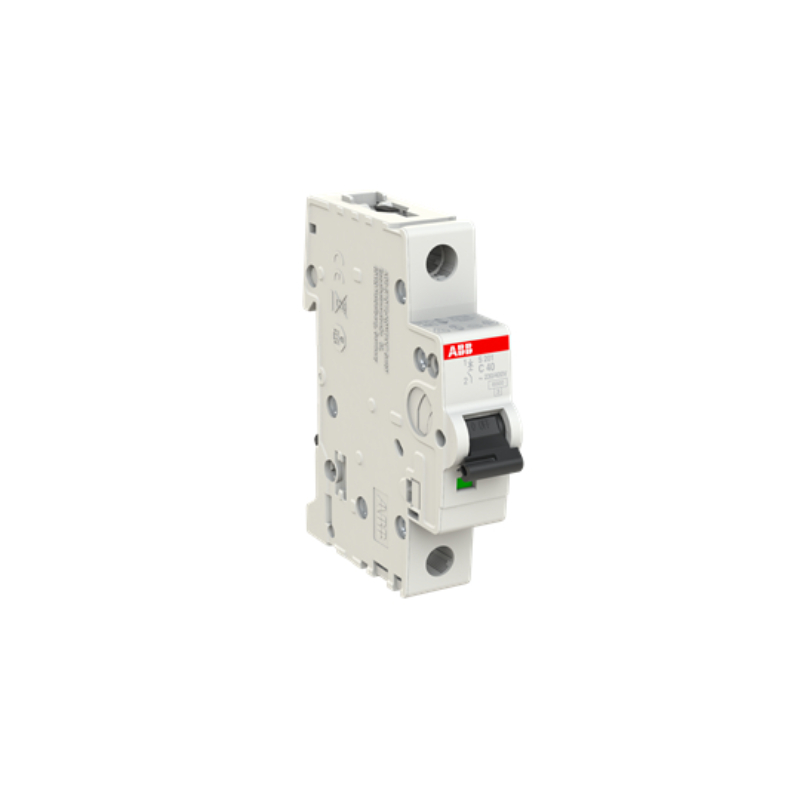

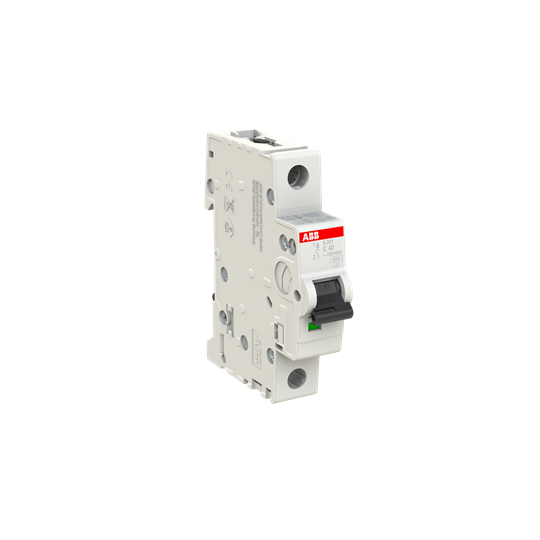

ABB S201C40 MCB 6kA 1P 40A 230VAC C CURVE INDUSTRIAL

Product Code: S201C40

  • - Protection against short circuit and thermal overload - Twin terminal for separate feeding of busbar and conductor - Contact Postion Indication - Captive screws - Finger safety with IP20 terminals - Pole configuration 1P
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Housing Material Insulation Group II, RAL 7035
Mounting Type DIN Rail
Brand ABB
Product Type MCB
Series S200
AC Voltage (V) 230/400
Application Commercial and Industrial
Breaking Capacity 230V AC - Icu (kA) 10
Current Rating (A) 40
Curve Type C Curve
Family S200
Icn-Rated Short Circuit Capacity (kA) 6
Impulse Withstand Voltage (kV/1.2µS) 4
Maximum Operational Voltage AC (V) 253
Maximum Operational Voltage DC (V) 72
Minimum Operational Voltage AC (V) 12
Minimum Operational Voltage DC (V) 12
No. of Poles 1P
Power Loss (W) 4.8/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 10
Rated Current (A) 40
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 440
Rated Operational Voltage AC (V) 230/400
Rated Short-Circuit Capacity - Icn (kA) 6
Rated Voltage AC (V) 230
Busbar Cross Section (mm²) Top/Bottom - 10/10
Cable Cross Section - Flexible (mm²) Top/Bottom - 25/25
Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 35/35
Dimensions (mm) 88H x 69D x 17.5W
Trip Curve C Curve
Pole Width (mm) 17.5
Degree of Protection IP20
Pollution Degree 3
Standards and Approvals AS/NZS 60898-1,AS/NZS 60947-2,UL 1077
Poles 1P
Breaking Capacity (kA) 10 @230 V AC
Inc-Rated Conditional Short Circuit Capacity (kA) 10

Description

The ABB Miniature Circuit Breaker is designed for commercial and industrial use. It offers 1 pole with a 40A capacity and provides C curve protection against both short circuits and thermal overload. This circuit breaker has a breaking capacity of 6kA at 230VAC and 10kA at 60VDC, making it suitable for various applications.
