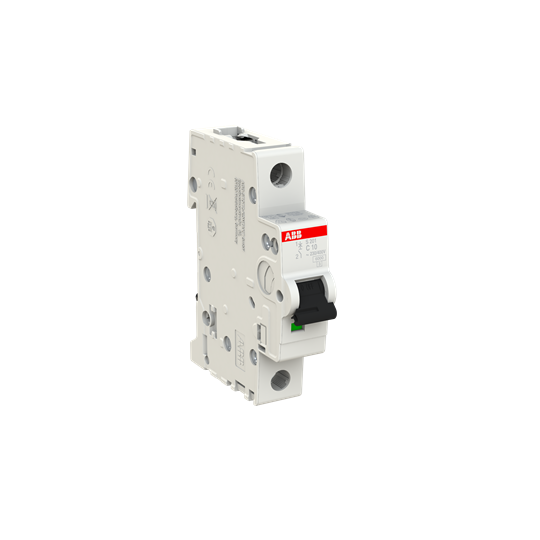

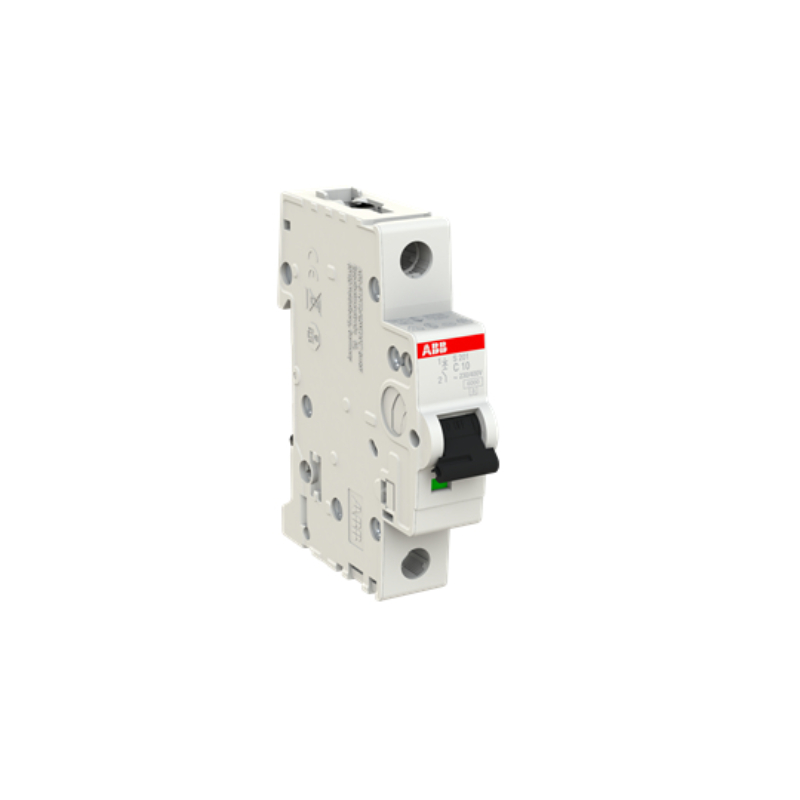

<p>When selecting a Miniature Circuit Breaker (MCB) for your commercial or industrial needs, understanding the technical specifications is crucial. This MCB from the S200 series offers a robust solution designed to meet stringent requirements and ensure reliable performance in demanding environments.</p><p>The MCB is rated for a current of 10 A, making it suitable for moderate load applications. It operates efficiently at both 230 VAC and 400 VAC, with a breaking capacity of 10 kA at 230 VAC, ensuring it can handle significant fault currents without failure. Its rated impulse withstand voltage is an impressive 4 kV, providing excellent protection against transient overvoltages.</p><p>Constructed according to AS/NZS 60898-1, AS/NZS 60947-2, and UL 1077 standards, this breaker adheres to international safety and performance benchmarks. The device features a single pole design with dimensions of 17.5 mm width, 88 mm height, and 69 mm depth—ideal for space-constrained installations on DIN rails.</p><p>With its IP20 degree of protection, the MCB is safeguarded against solid objects larger than 12mm but should be installed in an enclosure where higher degrees of ingress protection are required. Additionally, it boasts electrical durability up to an impressive 20,000 cycles.</p><p>The terminal type utilizes screw clamps suitable for cable cross-sections up to 35 sq-mm on both top and bottom connections. This ensures secure wiring connections that can accommodate substantial conductors typically used in commercial settings. The wire stripping length required is conveniently set at 12.5 mm.</p><p>Engineered with a Curve Type C characteristic curve profile, this breaker effectively manages standard loads while offering short circuit protection with a rated short circuit current capacity of up to 6 kA.</p><p>For added versatility in installation setups, it supports mounting on standard DIN rails—a common requirement in modern electrical distribution systems. The housing color follows RAL7035 Grey standards which blend well within most industrial panels.</p><p>In terms of energy efficiency considerations often pivotal in large-scale operations—the power loss stands at just around 2.1 W per unit when operational under normal conditions—making it not only effective but also economical over time.</p><p>Designed specifically for commercial and industrial applications requiring high reliability combined with straightforward integration into existing infrastructure frameworks—the S200 series represents dependable choice catering precisely towards those seeking durable yet efficient solutions across varied usage scenarios within these sectors.</p>
