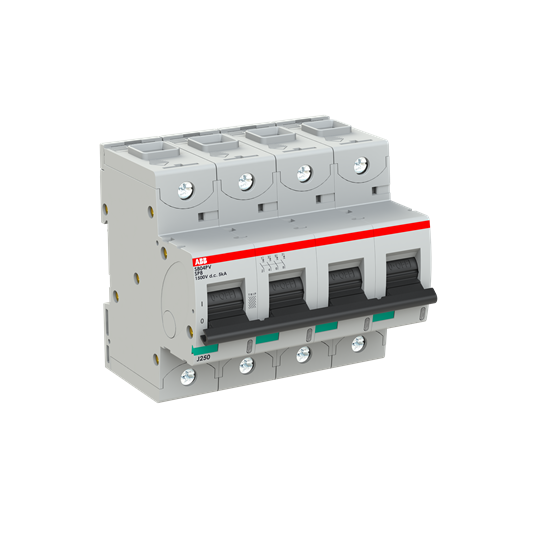

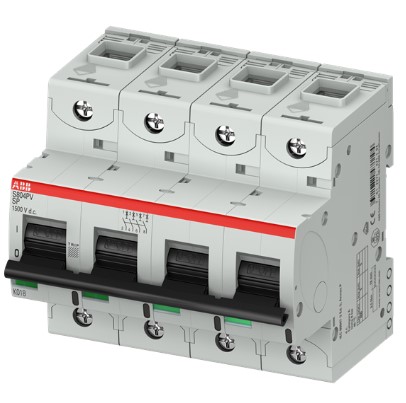

ABB S804PVSP8 MCB 5kA 4P 8A 1500V DC PHOTOVOLTAIC

Product Code: S804PVSP8

The S804PV-SP8 is a 4-pole High Performance Circuit breaker designed specifically for photovoltaics (DC) applications. It features cage terminals and has a rated current of 8 A. This circuit breaker is a current limiting device with a maximum breaking capacity of 5kA at 1500V. It is suitable for use with voltages up to 1500V DC.

Technical Specifications

Brand ABB
Breaking Capacity 800V DC - Icu (kA) 5
Curve Type B
Degree of Protection IP20
Dimensions (mm) 105W x 99H x 111D
No. of Poles 4
Pollution Degree 2
Power Loss (W) 6.96
Rated Current (A) 8
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage DC (V) 1500
Rated Voltage DC (V) 1500
