ABB S804PVSP40 MCB 5kA 4P 40A 1500V DC PHOTOVOLTAIC
Zoom
Zoom
Zoom

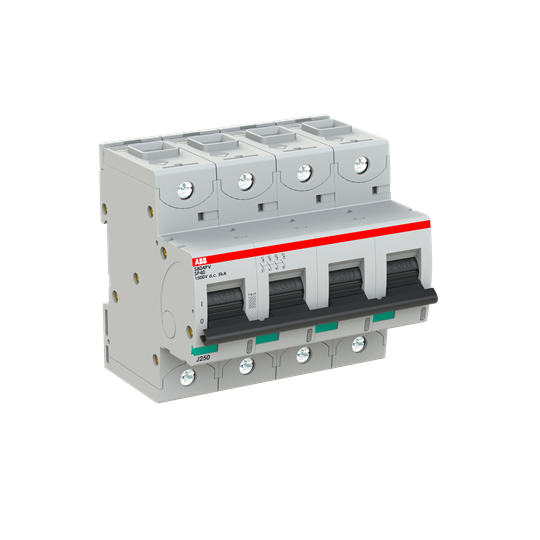

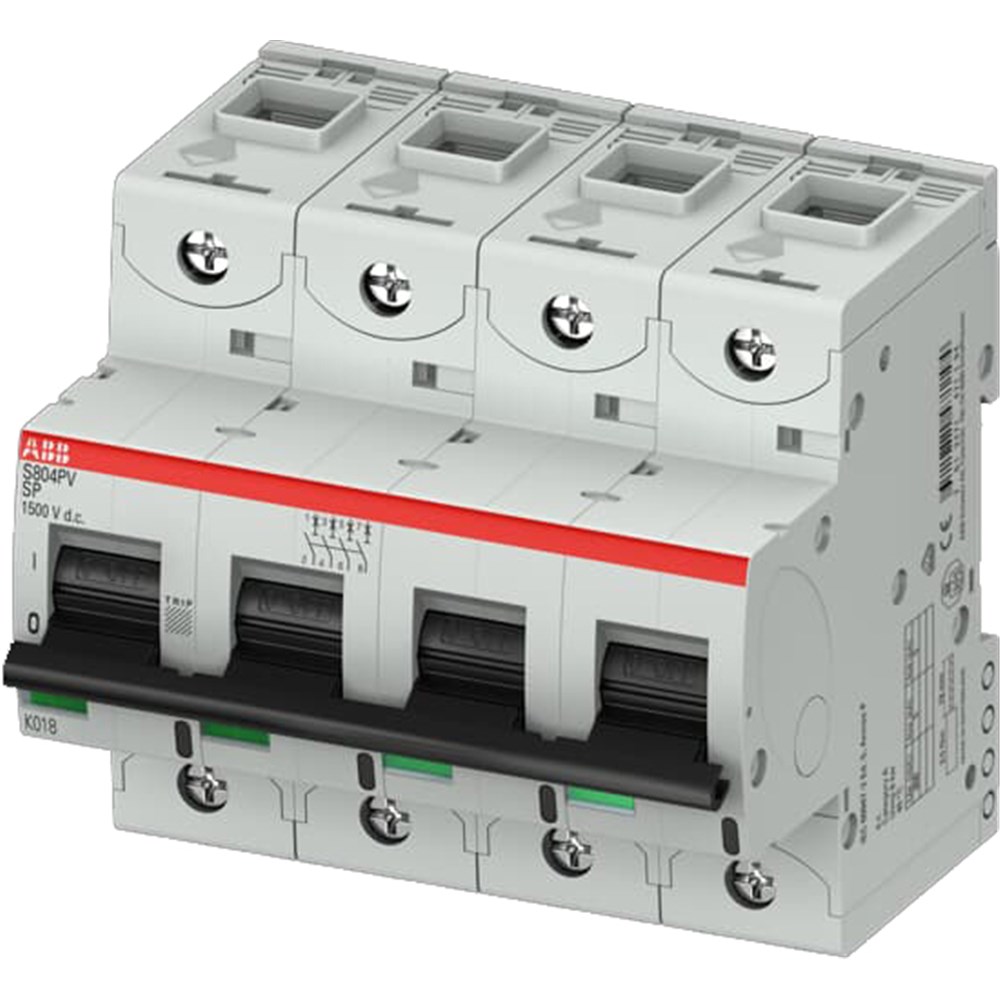

ABB S804PVSP40 MCB 5kA 4P 40A 1500V DC PHOTOVOLTAIC
Product Code: S804PVSP40
The S804PV-SP40 is a high-performance circuit breaker designed specifically for photovoltaic systems. It features a 4-pole design and a B-characteristic, making it ideal for DC applications. With a rated current of 40 A, it provides reliable protection for your system. This circuit breaker is a current limiting device with a maximum breaking capacity of 5kA at 1500V. It can handle voltages up to 1500V DC, ensuring the safety of your photovoltaic system. The S804PV-SP40 incorporates two tripping mechanisms for comprehensive protection. The thermal tripping mechanism safeguards against overload conditions, while the electromechanic tripping mechanism provides short circuit protection. Compliant with IEC/EN 60947-2 standards, this circuit breaker is suitable for industrial applications. It has received numerous approvals, allowing for global use. To enhance usability, the S804PV-SP40 offers an extensive range of accessories. These accessories make installation and operation more convenient. With its fast arc extinction capability, the S804PV-SP40 ensures secure operation for your application. Trust in this high-performance circuit breaker to protect your photovoltaic system effectively.
Technical Specifications
Brand
ABB
Breaking Capacity 800V DC - Icu (kA)
5
Curve Type
B
Degree of Protection
IP20
Dimensions (mm)
106W x 95H x 82.5D
No. of Poles
4
Pollution Degree
2
Power Loss (W)
14.8
Rated Current (A)
40
Rated Impulse Withstand Voltage (kV)
8
Rated Insulation Voltage DC (V)
1500
Rated Voltage DC (V)
1500
Documents
Datasheet
2CCF019628R0001-s804pv-sp40
