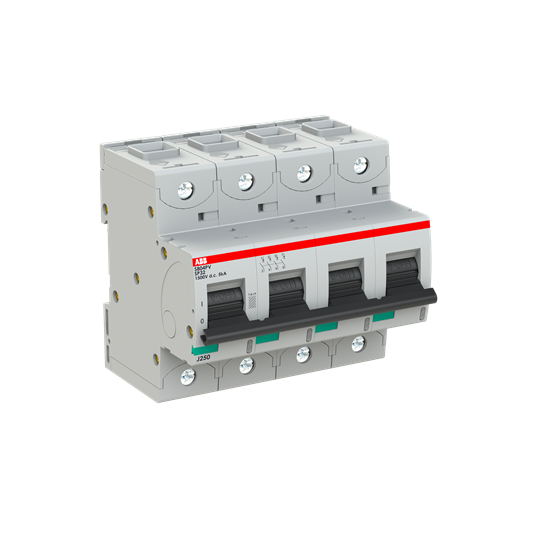

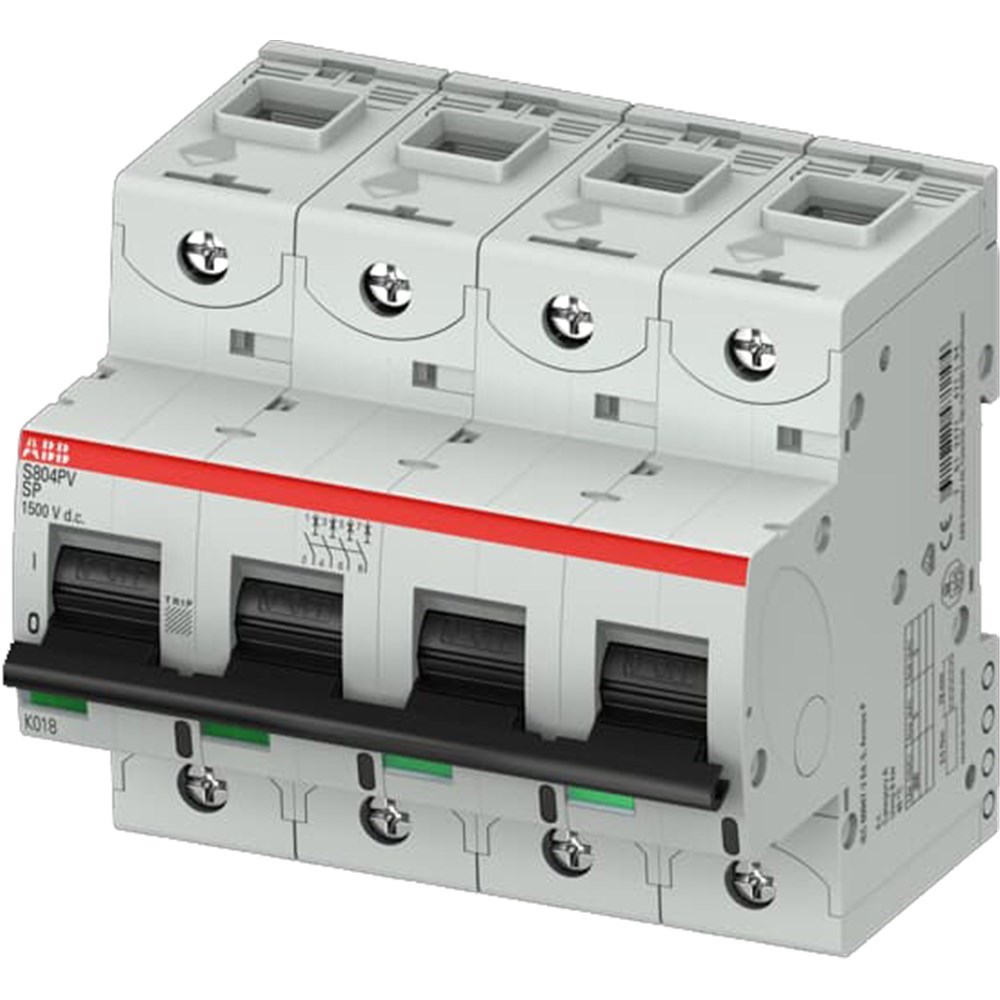

ABB S804PVSP32 MCB 5kA 4P 32A 1500V DC PHOTOVOLTAIC

Product Code: S804PVSP32

The S804PV-SP32 is a high-performance circuit breaker designed specifically for photovoltaic systems. It has four poles and a B-characteristic, with cage terminals and a rated current of 32 A. This circuit breaker is a current limiting device with a maximum breaking capacity of 5kA at 1500V DC. It can be used for voltages up to 1500V DC. The S804PV-SP32 features two tripping mechanisms: a thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection. It complies with IEC/EN 60947-2 standards, making it suitable for industrial applications. Additionally, it has received numerous approvals, allowing for worldwide use. To enhance usability, the S804PV-SP32 offers an extensive range of accessories. Its fast arc extinction capability ensures the security of your application.

Technical Specifications

Brand ABB
Breaking Capacity 800V DC - Icu (kA) 5
Curve Type B
Degree of Protection IP20
Dimensions (mm) 106W x 95H x 82.5D
No. of Poles 4
Pollution Degree 2
Power Loss (W) 12.8
Rated Current (A) 32
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage DC (V) 1500
Rated Voltage DC (V) 1500
