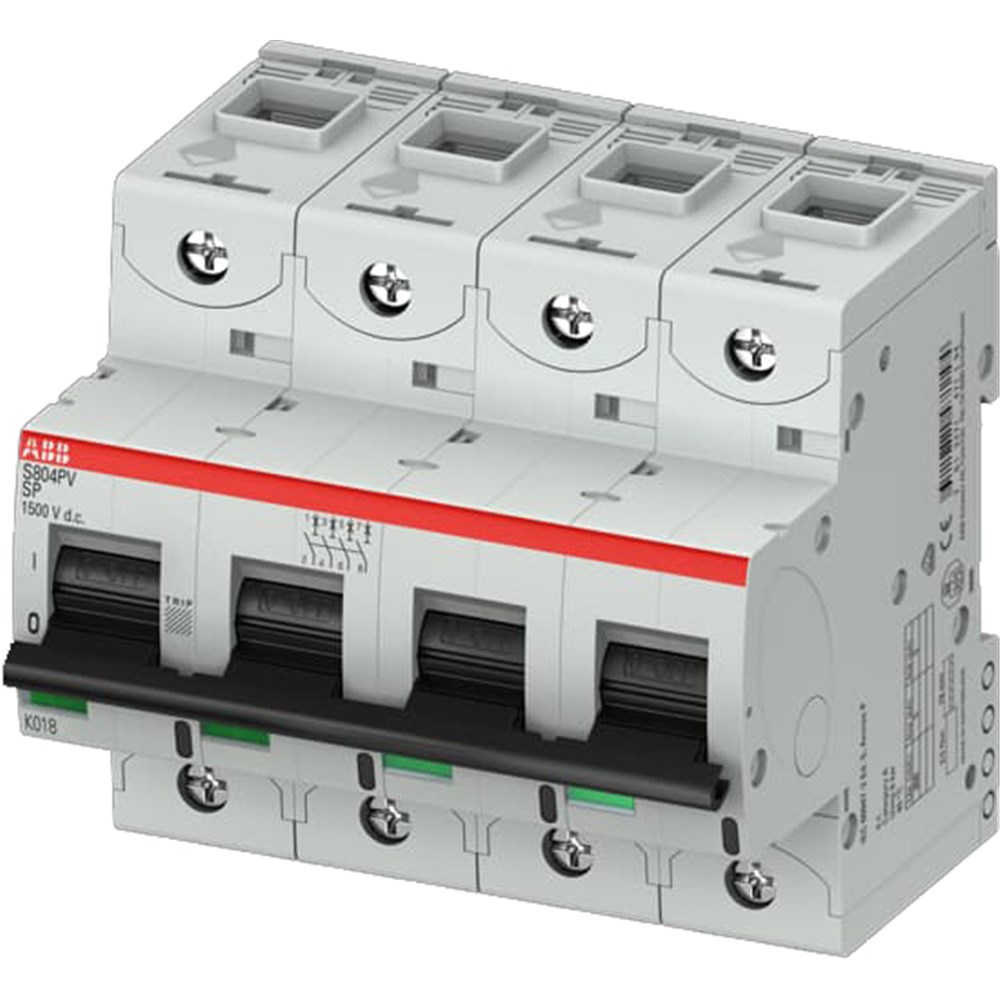

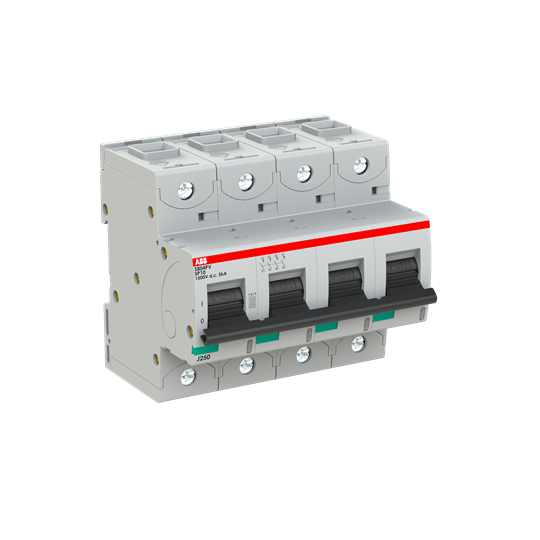

ABB S804PVSP10 MCB 5kA 4P 10A 1500V DC PHOTOVOLTAIC
Product Code: S804PVSP10
The S804PV-SP10 is a high-performance circuit breaker designed specifically for photovoltaic systems. It has a P4-pole configuration and a B-characteristic. With a rated current of 10 A, it is capable of limiting the current to protect your system. The maximum breaking capacity is 5kA at 1500V, making it suitable for voltages up to 1500V DC. This circuit breaker features two tripping mechanisms: thermal tripping for overload protection and electromechanic tripping for short circuit protection. It complies with IEC/EN 60947-2 Annex P standards, allowing its use in industrial applications. Additionally, it has received numerous approvals, making it suitable for worldwide use. To enhance convenience, the S804PV-SP10 offers an extensive range of accessories. Its fast arc extinction capability ensures the security of your application.
Technical Specifications
Brand
ABB
Breaking Capacity 800V DC - Icu (kA)
5
Curve Type
B
Degree of Protection
IP20
Dimensions (mm)
106W x 95H x 82.5D
No. of Poles
4
Pollution Degree
2
Power Loss (W)
6
Rated Current (A)
10
Rated Impulse Withstand Voltage (kV)
8
Rated Insulation Voltage DC (V)
1500
Rated Voltage DC (V)
1500
Documents
Product catalogue (Flipbook)
Datasheet
2CCF019622R0001-s804pv-sp10
