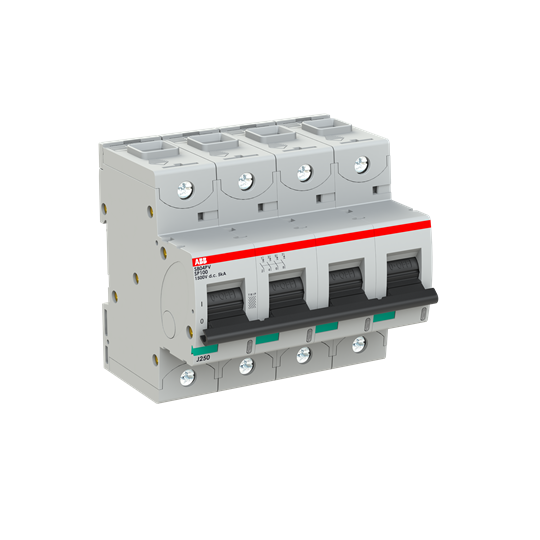

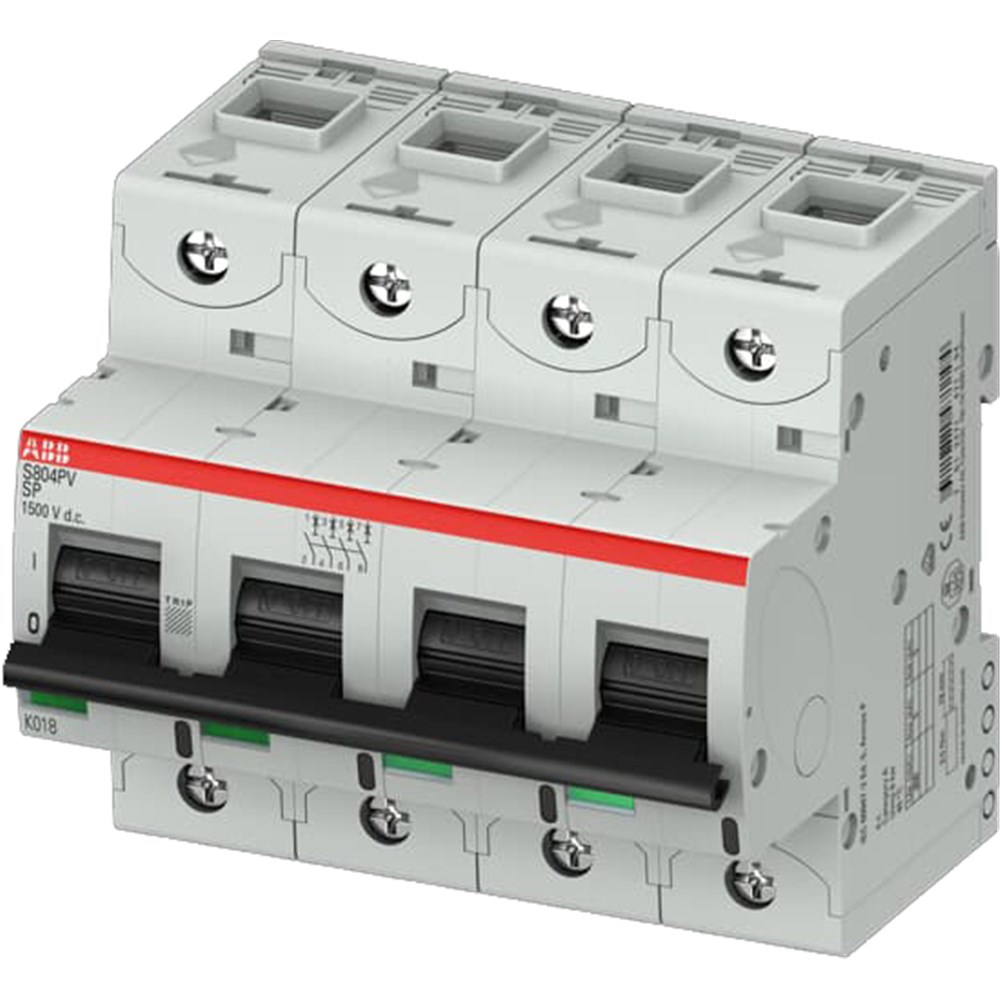

ABB S804PVSP100 MCB 5kA 4P 100A 1500V DC PHOTOVOLTAIC
Zoom
Zoom
Zoom
ABB S804PVSP100 MCB 5kA 4P 100A 1500V DC PHOTOVOLTAIC
Product Code: S804PVSP100
The S804PV-SP100 is a 4-pole High Performance Circuit breaker designed specifically for photovoltaic systems. It has a B-characteristic and cage terminal, with a rated current of 100 A. This circuit breaker is a current limiting device with a maximum breaking capacity of 5kA at 1500V DC. It can be used for voltages up to 1500V DC. The S804PV-SP100 features two tripping mechanisms for protection. The thermal tripping mechanism provides overload protection, while the electromechanic tripping mechanism offers short circuit protection. This circuit breaker complies with IEC/EN 60947-2 standards, making it suitable for industrial applications. It has received numerous approvals, allowing for worldwide use. To enhance usability, the S804PV-SP100 offers an extensive range of accessories. Additionally, its fast arc extinction capability ensures the security of your application.
Technical Specifications
Brand
ABB
Breaking Capacity 800V DC - Icu (kA)
5
Curve Type
B
Degree of Protection
IP20
Dimensions (mm)
106W x 95H x 82.5D
No. of Poles
4
Pollution Degree
2
Power Loss (W)
32
Rated Current (A)
100
Rated Impulse Withstand Voltage (kV)
8
Rated Insulation Voltage DC (V)
1500
Rated Voltage DC (V)
1500
Documents
Datasheet
2CCF019632R0001-s804pv-sp100
Product catalogue (Flipbook)
