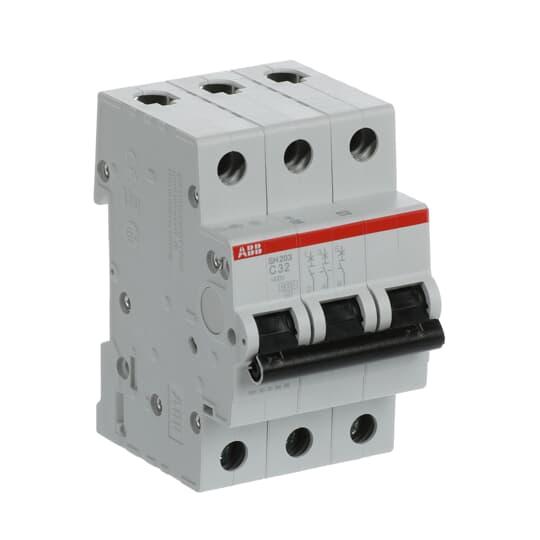

ABB SH203C32 Miniature Circuit Breaker 6kA 3-P 32A 400/415VAC C-Curve

<p>When selecting a Miniature Circuit Breaker (MCB) for industrial and commercial applications, it&amp;#39;s crucial to consider a product that balances reliability, compliance with standards, and technical specifications. The SH200 series MCB is designed to meet these needs effectively.</p><p>This three-pole MCB has a rated current of 32 A and operates within a voltage range of 400/415 VAC, making it suitable for various electrical systems. It features a breaking capacity of 6 kA, ensuring dependable protection against overloads and short circuits. The device adheres to AS/NZS 60898-1 and IEC/EN 60898-1 standards, confirming its compliance with international safety regulations.</p><p>In terms of construction, the SH200 series boasts an IP20 degree of protection which safeguards against finger contact with live parts. The screw clamp terminal type ensures secure connections while supporting cable cross-sections up to 25 sq-mm on both top and bottom terminals. For installation flexibility, this MCB is mounted on a DIN rail system.</p><p>The unit&amp;#39;s dimensions are compact yet robust with a width of 52.5 mm, height of 85 mm, and depth measuring at 69 mm. Each pole occupies only 17.5 mm in width which allows for efficient use of space within control panels or distribution boards.</p><p>Performance-wise, the SH200 series offers impressive electrical durability rated at up to 10,000 cycles under normal operating conditions defined by ambient temperatures ranging from -25&amp;#176;C to +55&amp;#176;C for operation and -40&amp;#176;C to +70&amp;#176;C for storage.</p><p>Technicians will appreciate the toggle actuator type which provides straightforward manual operation when necessary. Additionally, it supports both AC frequencies (50/60 Hz), further enhancing its versatility across different installations.</p><p>With an impulse withstand voltage rating of 4 kV combined with insulation capabilities up to 440 V this MCB promises high resilience against transient overvoltages often encountered in industrial environments.</p><p>Finally housed in RAL7035 grey color casing recognized for its neutrality amidst other equipment components these breakers blend seamlessly into existing setups without drawing undue attention away from their primary function: safeguarding your electrical infrastructure efficiently reliably consistently over time all encapsulated within one compact durable package collection known simply as SH200 Series</p>
