Product Code: S802PVSP63

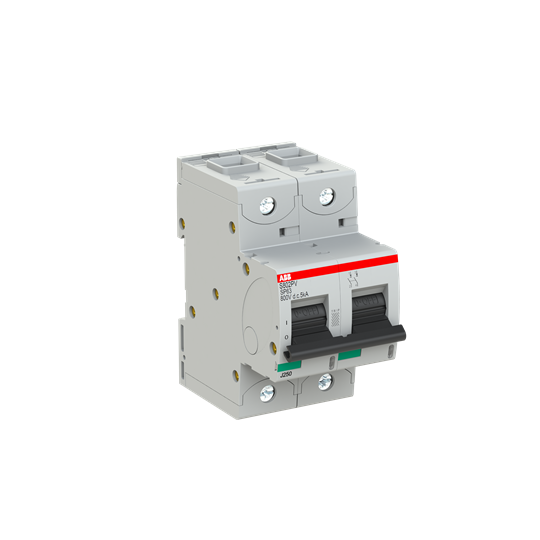

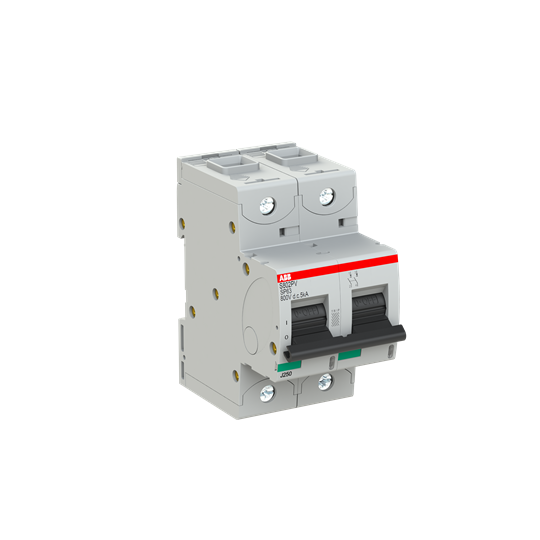

The S802PV-SP63 is a 2-pole High Performance Circuit breaker for photovoltaics (DC) with B-characteristic, with cage terminal and a rated current of 63 A. It is a current limiting device with a maximum breaking capacity of 5kA at 800V. It can be used for voltages up to 800V DC. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802PV-SP63 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802PV-SP63 more comfortable. Due to the fast arc extinction of S802PV-SP63 your application will be secured.

Built-in Depth (mm)	82.5
Current Limiting Class	3
Minimum Temperature (°C)	-25
No. of Protected Poles	2
Release Type	B
Voltage Type	DC
Brand	ABB
Breaking Capacity 800V DC - Icu (kA)	5
Curve Type	B Curve
Degree of Protection	IP20
Dimensions (mm)	54W x 95H x 82.5D
No. of Poles	2
Overvoltage Category	3
Pollution Degree	2
Power Loss (W)	12.8
Rated Current (A)	63
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	1500
Rated Insulation Voltage DC (V)	1500
Rated Voltage (V)	400
Rated Voltage DC (V)	800
Width in Number of Modular Spacings	3
