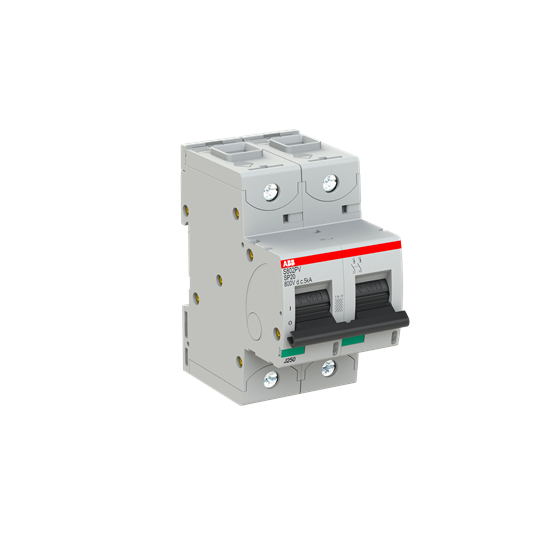

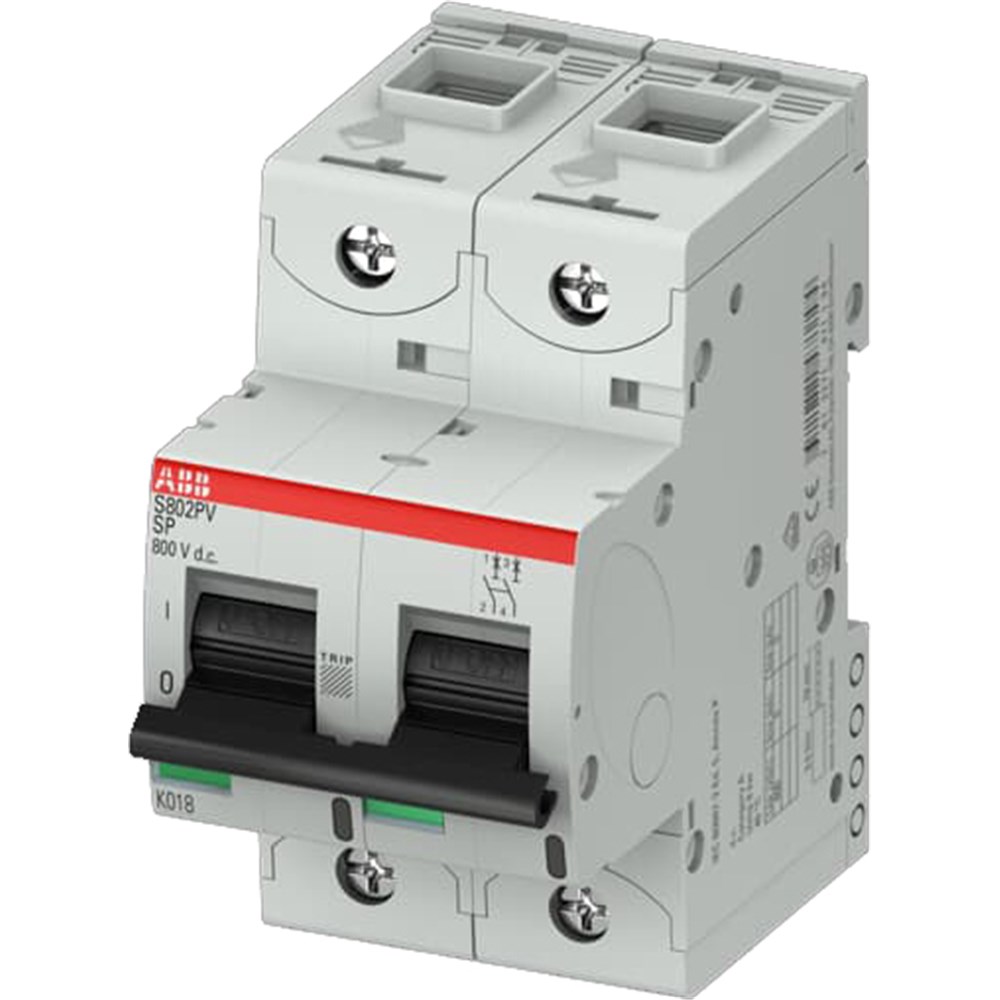

ABB S802PVSP20 MCB 5kA 2P 20A 800V DC PHOTOVOLTAIC

The S802PV-SP20 is a 2-pole High Performance Circuit breaker designed specifically for photovoltaics (DC) applications. It has a B-characteristic and features cage terminals. With a rated current of 20 A, it is a current limiting device with a maximum breaking capacity of 5kA at 800V. This circuit breaker can be used for voltages up to 800V DC. The S802PV-SP20 incorporates two tripping mechanisms for enhanced protection. The thermal tripping mechanism safeguards against overload conditions, while the electromechanic tripping mechanism provides short circuit protection. Compliant with IEC/EN 60947-2 standards, the S802PV-SP20 is suitable for industrial applications. It holds numerous approvals, allowing for global usage. Additionally, the extensive range of accessories available further enhances the convenience and usability of this product. Thanks to its fast arc extinction capability, the S802PV-SP20 ensures secure operation for your application.
