ABB S802PVSP100 MCB 5kA 2P 100A 800V DC PHOTOVOLTAIC
Zoom
Zoom
Zoom

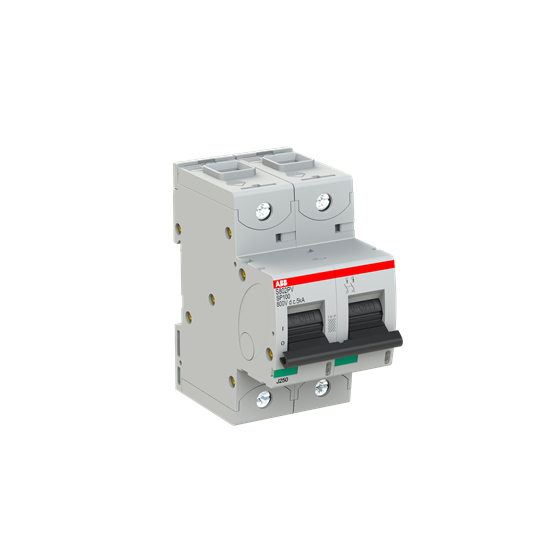

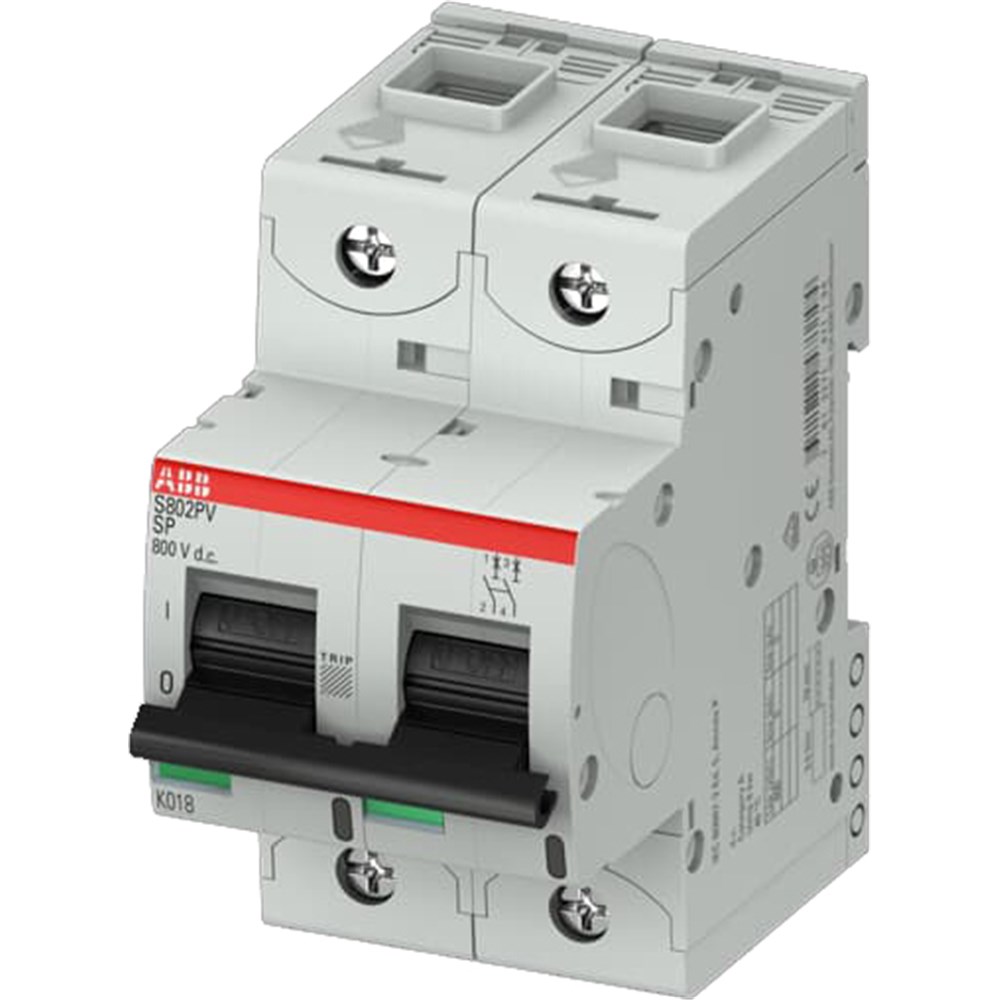

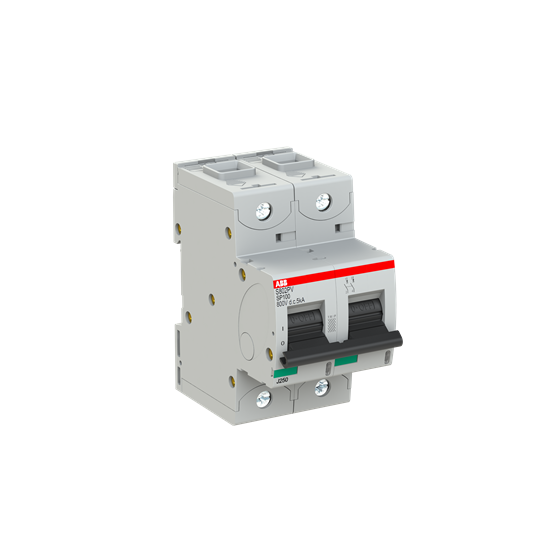

ABB S802PVSP100 MCB 5kA 2P 100A 800V DC PHOTOVOLTAIC
Product Code: S802PVSP100
The S802PV-SP100 is a high-performance 2-pole circuit breaker designed specifically for photovoltaic systems. It has a B-characteristic and features cage terminals for easy installation. With a rated current of 100 A, it is capable of limiting the current and has a maximum breaking capacity of 5kA at 800V. This circuit breaker can be used for voltages up to 800V DC. The S802PV-SP100 is equipped with two tripping mechanisms: thermal tripping for overload protection and electromechanic tripping for short circuit protection. It complies with IEC/EN 60947-2 standards, making it suitable for industrial applications. Additionally, it has obtained numerous approvals, allowing its use worldwide. To enhance convenience, the S802PV-SP100 offers an extensive range of accessories. Its fast arc extinction capability ensures the security of your application.
Technical Specifications
Brand
ABB
Breaking Capacity 800V DC - Icu (kA)
5
Curve Type
B
Degree of Protection
IP20
Dimensions (mm)
54W x 95H x 82.5D
No. of Poles
2
Pollution Degree
2
Power Loss (W)
16
Rated Current (A)
100
Rated Impulse Withstand Voltage (kV)
8
Rated Insulation Voltage DC (V)
1500
Rated Voltage DC (V)
800
Documents
Datasheet
2CCF019607R0001-s802pv-sp100
IPD Product Catalogue V17
