Product Code: S802HVK10

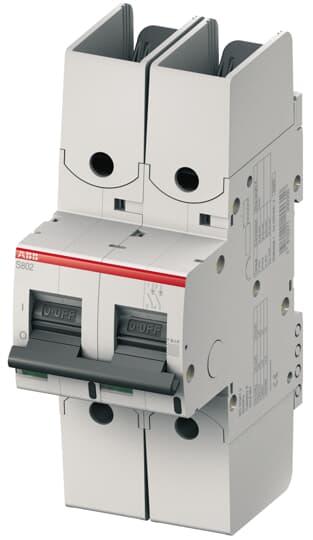

The S802HV-K10 is a 2-pole High Performance Circuit breaker with K-characteristic, with cage terminal, long separating plates and a rated current of 10 A. It is a current limiting device with a maximum breaking capacity of 4kA at 580/1000V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802HV-K10 complies with IEC/EN 60947-2 and allows the use for industrial applications. It can be used worldwide. The extensive range of accessory makes the use of S802HV-K10 more comfortable. Due to the fast arc extinction of S802HV-K10 your application will be secured.

Built-in Depth (mm)	82.5
Current Limiting Class	3
Minimum Temperature (°C)	-25
No. of Protected Poles	2
Release Type	K
Voltage Type	AC
Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	8
AC Voltage (V)	580/1000
Application	Commercial and Industrial
Breaking Capacity (kA)	4 @1000 V AC
Breaking Capacity 230V AC - Icu (kA)	4
Breaking Capacity 400V AC - Icu (kA)	4
Cable Cross Section - Flexible (mm²)	Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 50/50
Current Rating (A)	10
Curve Type	K Curve
Degree of Protection	IP20
Dimensions (mm)	54W x 142H x 82.5D
Family	S800HV
Housing Material	Insulation Group I, RAL 7035
Icn-Rated Short Circuit Capacity (kA)	2.5
Inc-Rated Conditional Short Circuit Capacity (kA)	4
Minimum Operational Voltage AC (V)	12
Mounting Type	DIN Rail
No. of Poles	2
Overvoltage Category	3
Pole Width (mm)	27
Poles	2P
Pollution Degree	2
Power Loss (W)	3
Rated Conditional Short-Circuit Current - Inc (kA)	4
Rated Current (A)	10
Rated Frequency (Hz)	50
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	1000
Rated Operational Voltage AC (V)	580/1000
Rated Short-Circuit Capacity - Icn (kA)	2.5
Rated Voltage (V)	400
Rated Voltage AC (V)	1000
Series	S800HV
Standards and Approvals	AS/NZS 60947-2, UL 1077
Trip Curve	K Curve
Width in Number of Modular Spacings	3
