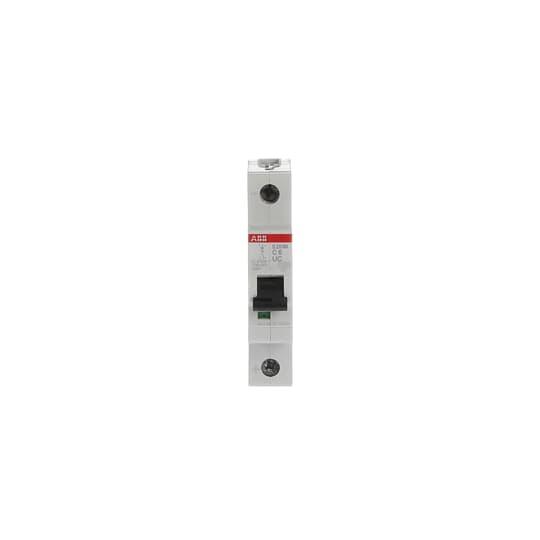

ABB S201MC6UC MCB 10kA 1P 6A 220VDC C CURVE INDUSTRIAL

Product Code: S201MC6UC

The ABB MCB is a 1 Pole circuit breaker designed specifically for DC applications. It offers 10kA protection against short circuits and thermal overload at 220VDC. With a C curve rating, it is suitable for both commercial and industrial use. Trust ABB's reliable and high-quality range of MCBs for your electrical protection needs.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 4
AC Voltage (V) 230/240
Application Commercial and Industrial
Breaking Capacity (kA) 10 @230 V AC
Breaking Capacity 230V AC - Icu (kA) 10
Busbar Cross Section (mm²) Top/Bottom - 10/10
Cable Cross Section - Flexible (mm²) Top/Bottom - 25/25
Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 35/35
Current Rating (A) 6
Curve Type C Curve
DC Voltage (V) 220
Degree of Protection IP20
Dimensions (mm) 85H x 69D x 17.5W
Family S200MUC
Housing Material Insulation group I, RAL 7035
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 10
Maximum Operational Voltage AC (V) 253
Maximum Operational Voltage DC (V) 250
Minimum Operational Voltage AC (V) 12
Minimum Operational Voltage DC (V) 12
Mounting Type DIN Rail
No. of Poles 1P
Pole Width (mm) 17.5
Poles 1P
Pollution Degree 2
Power Loss (W) 2/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 10
Rated Current (A) 6
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 484
Rated Operational Voltage AC (V) 230
Rated Operational Voltage DC (V) 220
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Voltage AC (V) 230
Series S200MUC
Standards and Approvals AS/NZS 60898-1,AS/NZS 60947-2,UL 1077
Trip Curve C Curve
