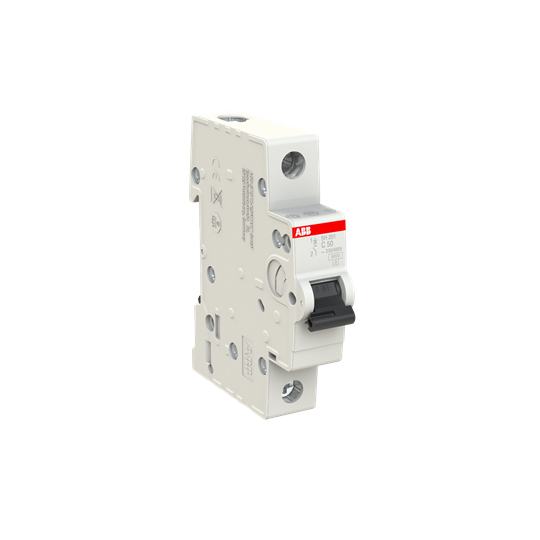

ABB SH201C50 MCB 6kA 1P 50A 230VAC C CURVE DOMESTIC

Product Code: SH201C50

The ABB Miniature Circuit Breaker is designed for loadcentre applications. It offers 6kA breaking capacity and has a single pole with a rating of 50A at 230VAC. The C curve protection ensures safety against short circuits and thermal overload. Please note that this circuit breaker cannot be chassis mounted and is part of the domestic range from ABB.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 4
AC Voltage (V) 230/400
Application Domestic
Cable Cross Section - Flexible (mm²) Top/Bottom - 16/16
Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 25/25
Current Rating (A) 50
Curve Type C Curve
Degree of Protection IP20
Dimensions (mm) 85H x 69D x 17.5W
Family SH200
Housing Material Insulation Group II, RAL 7035
Icn-Rated Short Circuit Capacity (kA) 6
Inc-Rated Conditional Short Circuit Capacity (kA) 6
Maximum Operational Voltage AC (V) 253
Minimum Operational Voltage AC (V) 12
Mounting Type DIN Rail
No. of Poles 1P
Pole Width (mm) 17.5
Poles 1P
Pollution Degree 2
Power Loss (W) 3.25/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 6
Rated Current (A) 50
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 440
Rated Operational Voltage AC (V) 230/400
Rated Short-Circuit Capacity - Icn (kA) 6
Rated Voltage AC (V) 230
Series SH200
Standards and Approvals AS/NZS 60898-1
Trip Curve C Curve
